CM150DUS-12F
IGBT MOD 600V 150A 520WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More

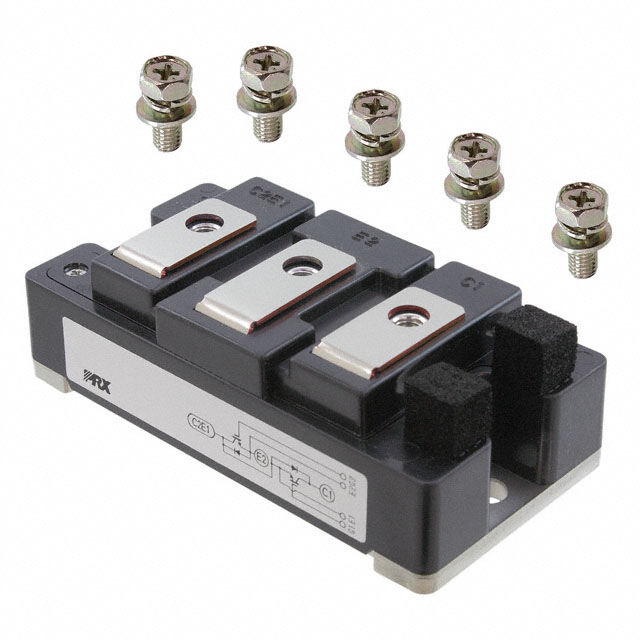

Powerex Inc. IGBT Module CM150DUS-12F from the IGBTMOD™ series is a Trench IGBT Half Bridge module designed for demanding applications. This module features a 600V collector-emitter breakdown voltage and a maximum collector current of 150A. Its robust construction with a chassis mount package ensures efficient thermal management, critical for high-power operations. The module delivers a maximum power dissipation of 520W, with a typical Vce(on) of 2.7V at 15V gate-emitter voltage and 150A collector current. Input capacitance (Cies) is rated at 41nF at 10V. The operating temperature range of -40°C to 150°C (TJ) makes it suitable for industrial automation, motor drives, and power conversion systems.
Additional Information
Series: IGBTMOD™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 150A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | Trench |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Power - Max | 520 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 41 nF @ 10 V |
