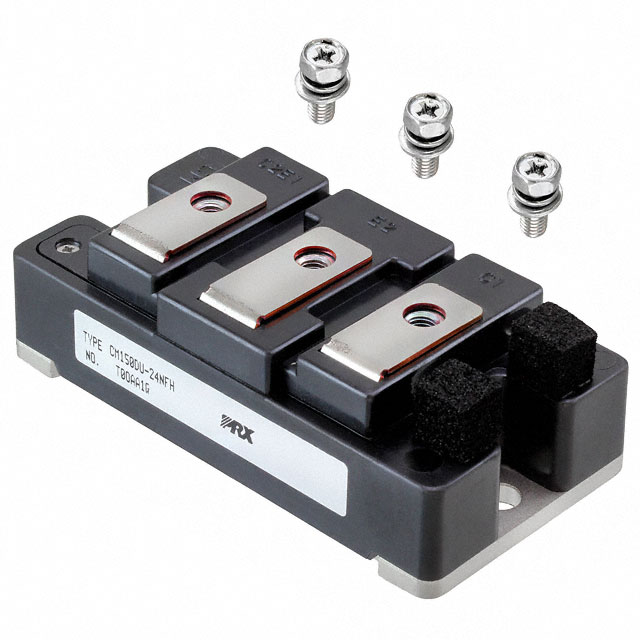

CM150DU-24NFH
IGBT MOD 1200V 150A 650WManufacturer: Powerex Inc.
Categories: IGBT Modules
Quality Control: Learn More
Powerex Inc. IGBTMOD™ CM150DU-24NFH is a high-performance IGBT module designed for robust power conversion applications. This half-bridge configured module features a 1200 V collector-emitter breakdown voltage and a continuous collector current rating of 150 A, with a maximum power dissipation of 650 W. The module exhibits a typical Vce(on) of 6.5 V at 15 V gate-emitter voltage and 150 A collector current, ensuring efficient power handling. Input capacitance (Cies) is specified at 24 nF at 10 V.
The CM150DU-24NFH is suitable for demanding industrial applications, including motor drives, uninterruptible power supplies (UPS), and renewable energy systems. Its chassis mount design facilitates effective thermal management in high-power environments. The operating temperature range is -40°C to 150°C (TJ). This Powerex Inc. IGBT module is supplied in bulk packaging.
Additional Information
Series: IGBTMOD™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Input | Standard |
| Configuration | Half Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Vce(on) (Max) @ Vge, Ic | 6.5V @ 15V, 150A |
| NTC Thermistor | No |
| Supplier Device Package | Module |
| IGBT Type | - |
| Current - Collector (Ic) (Max) | 150 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Power - Max | 650 W |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 24 nF @ 10 V |
