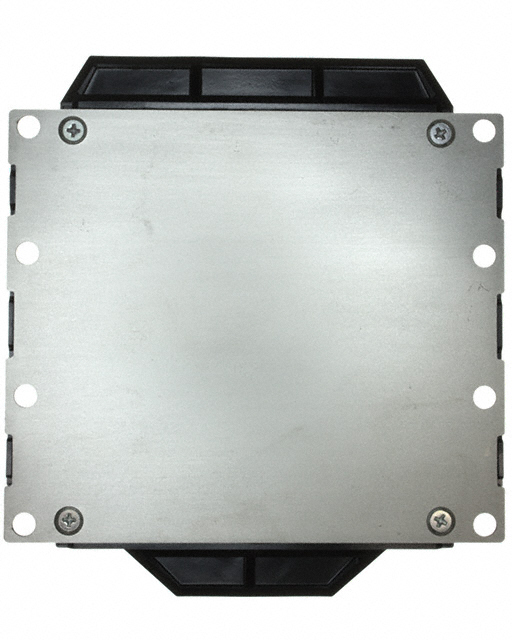

CM1400DU-24NF

IGBT MOD 1200V 1400A 3900W

Manufacturer: Powerex Inc.

Categories: IGBT Modules

Quality Control: Learn More

Powerex Inc. IGBTMOD™ CM1400DU-24NF is a Half Bridge IGBT Module designed for high-power applications. This module features a collector-emitter voltage rating of 1200 V and a continuous collector current capability of 1400 A. With a maximum power dissipation of 3900 W and a Vce(on) of 2.5V at 15V gate-emitter voltage and 1400A collector current, it offers efficient power handling. The input capacitance (Cies) is 220 nF at 10V. Operating across a temperature range of -40°C to 150°C (TJ), this chassis mount module is suitable for industrial motor drives and power conversion systems. The module is supplied in Bulk packaging.

Additional Information

Series: IGBTMOD™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseModule
Mounting TypeChassis Mount
InputStandard
ConfigurationHalf Bridge
Operating Temperature-40°C ~ 150°C (TJ)
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 1400A
NTC ThermistorNo
Supplier Device PackageModule
IGBT Type-
Current - Collector (Ic) (Max)1400 A
Voltage - Collector Emitter Breakdown (Max)1200 V
Power - Max3900 W
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce220 nF @ 10 V
