VLA591-01R

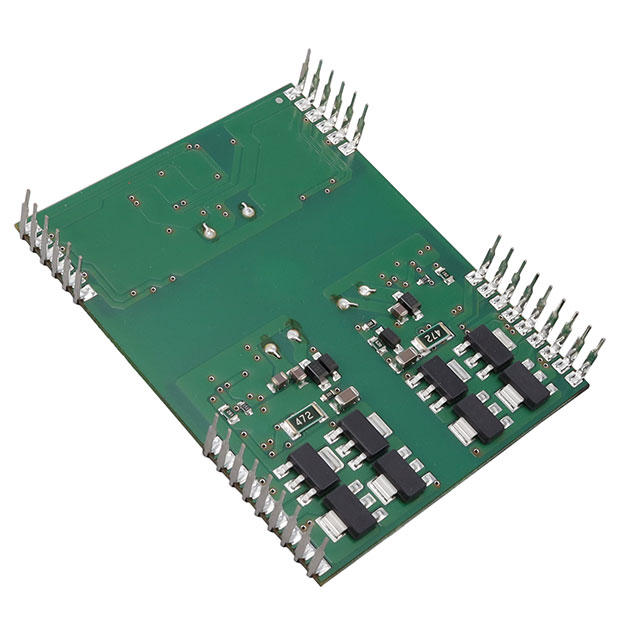

IC GATE DRVR FULL-BRIDGE MODULEManufacturer: Powerex Inc.
Categories: Gate Drivers
Quality Control: Learn More
Powerex Inc. VLA591-01R is a full-bridge gate driver module designed for IGBTs. This non-inverting, independent channel driver provides 20A peak output current for both source and sink applications. The module is configured for full-bridge operation and features a low supply voltage range of 14.5V to 15.5V. Typical rise and fall times are 520ns and 120ns respectively. The VLA591-01R is housed in a 50-DIP module with 30 leads and is available in tray packaging. Operating temperature ranges from -40°C to 85°C. This component finds application in power conversion systems and industrial motor drives.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 50-DIP Module, 30 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 14.5V ~ 15.5V |
| Input Type | Non-Inverting |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 520ns, 120ns |
| Channel Type | Independent |
| Driven Configuration | Full-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 20A, 20A |
| Programmable | Not Verified |
