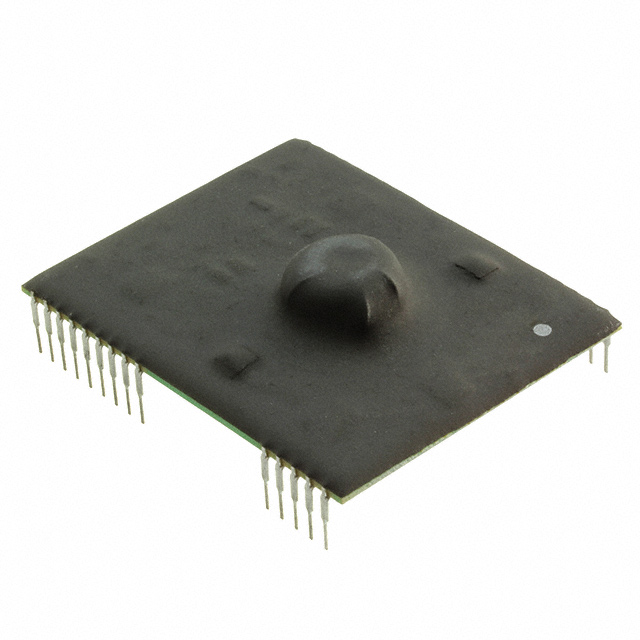

VLA567-01R
IC GATE DRVR HALF-BRIDGE MODULEManufacturer: Powerex Inc.
Categories: Gate Drivers
Quality Control: Learn More
Powerex Inc. VLA567-01R is a Half-Bridge Gate Driver IC, a non-inverting module designed for IGBT gate control. This electronic component facilitates independent channel operation, supporting two drivers within a 44-DIP Module, 28 Leads package for through-hole mounting. Key specifications include a supply voltage range of 14.2V to 15.8V and typical rise and fall times of 400ns and 300ns, respectively. The module operates within an ambient temperature range of -20°C to 70°C. This device is suitable for applications in industrial automation, power conversion, and motor control systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 44-DIP Module, 28 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Voltage - Supply | 14.2V ~ 15.8V |
| Input Type | Non-Inverting |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 400ns, 300ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
M57959L
IC GATE DRVR LOW-SIDE MODULE

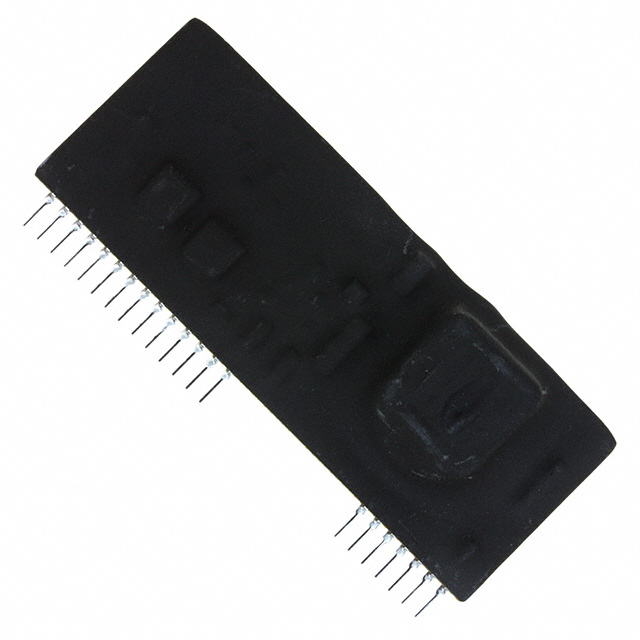

VLA502-01
