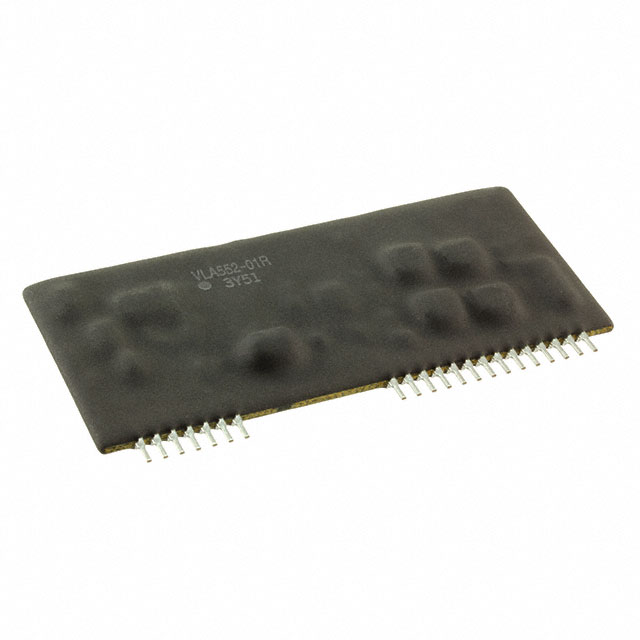

VLA552-01R
IC GATE DRVR LOW-SIDE MODULEManufacturer: Powerex Inc.
Categories: Gate Drivers
Quality Control: Learn More
The Powerex Inc. VLA552-01R is a single-channel, low-side gate driver module designed for IGBT applications. This component features both inverting and non-inverting input configurations, offering flexibility in control signal management. It is housed in a 30-SIP module with 21 leads, suitable for through-hole mounting. The device operates with a supply voltage range of 14.2V to 15.8V and is rated for an ambient temperature range of -25°C to 70°C. Typical rise and fall times are 600ns and 300ns, respectively. This module is commonly utilized in industrial power conversion systems and motor control applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 30-SIP Module, 21 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 70°C (TA) |
| Voltage - Supply | 14.2V ~ 15.8V |
| Input Type | Inverting, Non-Inverting |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 600ns, 300ns |
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
