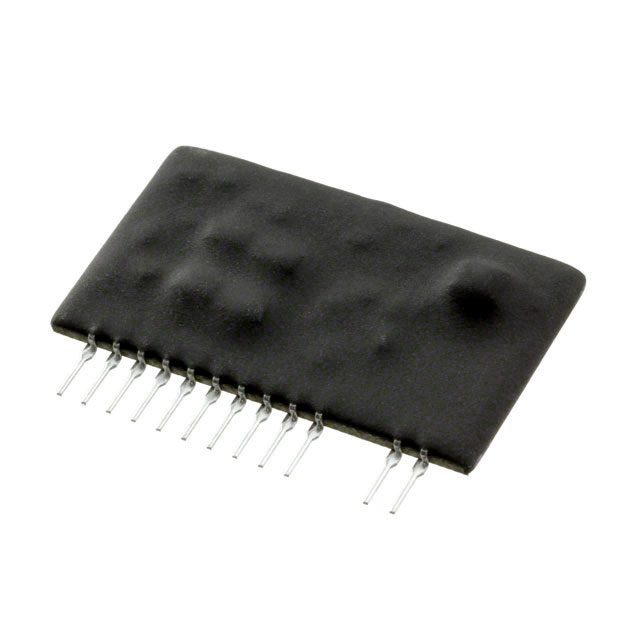

VLA541-01R
IC GATE DRVR LOW-SIDE MODULEManufacturer: Powerex Inc.
Categories: Gate Drivers
Quality Control: Learn More
The Powerex Inc. VLA541-01R is a single-channel, non-inverting low-side gate driver module. Designed for IGBTs, this component delivers ±3A peak output current for both source and sink operations, facilitating efficient switching. Its through-hole mounting and 14-SIP module package with 12 leads ensure robust integration into power electronic designs. The VLA541-01R operates across a supply voltage range of 14V to 17V and is specified for an ambient temperature range of -20°C to 70°C. Typical rise and fall times are 300ns. This module is commonly employed in motor control, power supplies, and industrial automation applications where precise gate control of power semiconductor devices is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-SIP Module, 12 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Voltage - Supply | 14V ~ 17V |
| Input Type | Non-Inverting |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 300ns, 300ns |
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Programmable | Not Verified |
