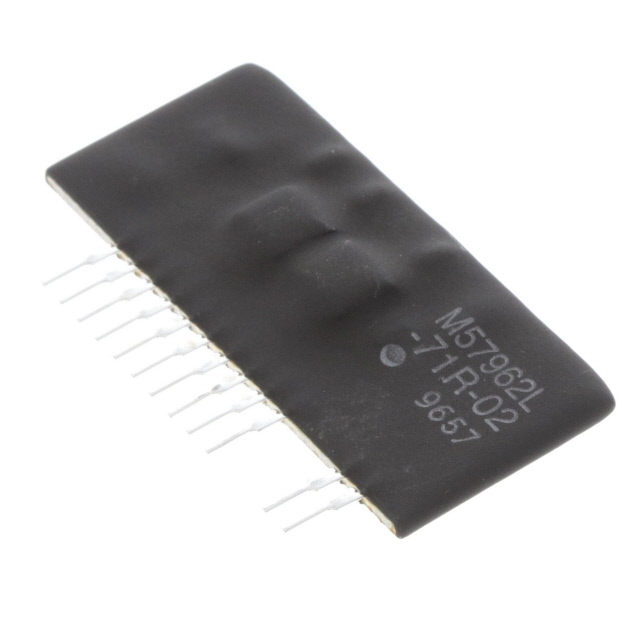

M57962L-71R-02
IC GATE DRVR LOW-SIDE MODULEManufacturer: Powerex Inc.
Categories: Gate Drivers
Quality Control: Learn More
Low-Side Gate Driver IC Non-Inverting Module
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-SIP Module, 12 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 60°C |
| Voltage - Supply | 14V ~ 15V |
| Input Type | Non-Inverting |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 600ns, 400ns |
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Programmable | Not Verified |
