M81709FP

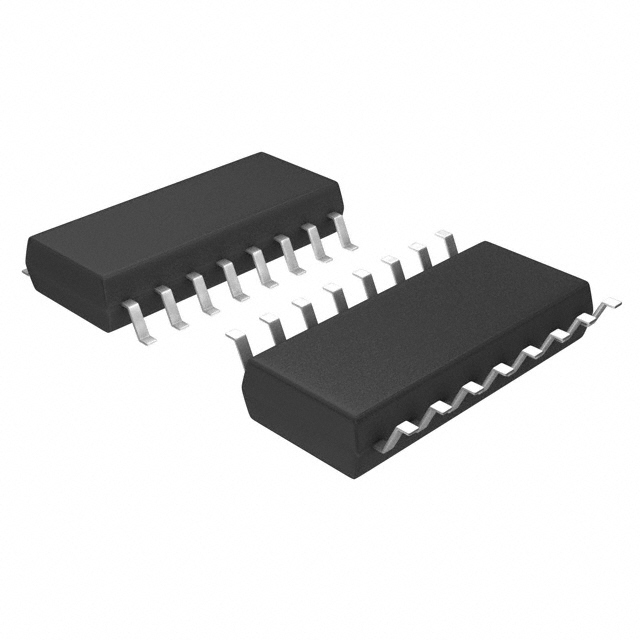

IC HALF BRIDGE DRIVER 2A 16SOPManufacturer: Powerex Inc.
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Powerex Inc. M81709FP is a Half Bridge driver designed for AC loads, incandescent bulbs, and general-purpose power control. This 16-SOP component offers 2A continuous output current with a 2.5A peak output capability. It features shoot-through fault protection and a logic interface. The M81709FP supports inductive, capacitive, and resistive load types, operating with a supply voltage range of 10V to 20V and a maximum load voltage of 500V. Typical Rds(on) is 2.5 Ohms for the low-side and 10 Ohms for the high-side MOSFETs. This device is suitable for surface mounting and operates within an ambient temperature range of -20°C to 125°C. Applications include industrial power control and general electronics.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 16-SOIC (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 10V ~ 20V |
| Rds On (Typ) | 2.5Ohm LS, 10Ohm HS |
| Applications | AC Loads, Bulbs, General Purpose |
| Current - Output / Channel | 2A |
| Current - Peak Output | 2.5A |
| Technology | Power MOSFET |
| Voltage - Load | 500V (Max) |
| Supplier Device Package | 16-SOP |
| Fault Protection | Shoot-Through |
| Load Type | Inductive, Capacitive, Resistive |
