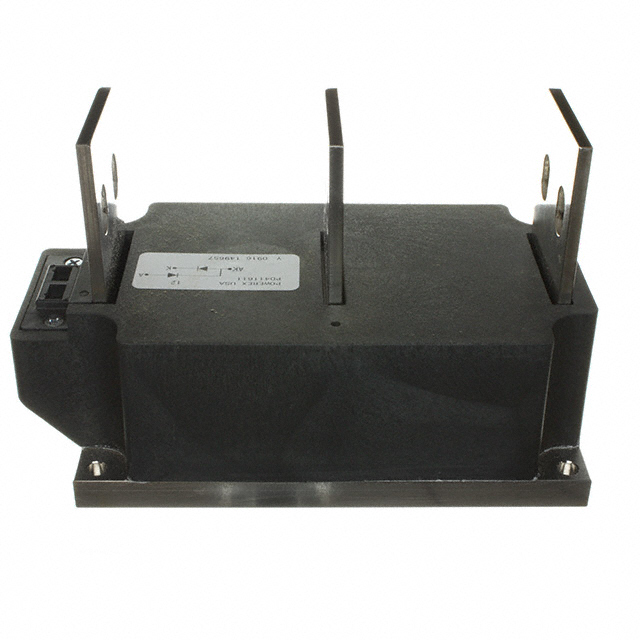

QRD1210T30
DIODE MODULE GP 1200V 53AManufacturer: Powerex Inc.
Categories: Diode Arrays
Quality Control: Learn More
The Powerex Inc. QRD1210T30 is a diode module featuring a single pair of diodes connected in series. This component is rated for a maximum repetitive peak reverse voltage (Vr) of 1200V and an average rectified forward current (Io) of 53A per diode. The forward voltage drop (Vf) is a maximum of 3.5V at 100A. With a reverse leakage current of 1mA at 1200V and a reverse recovery time (trr) of 250ns, this module is classified as fast recovery. Designed for chassis mounting in a module package, the QRD1210T30 is suitable for power conversion and control applications across various industrial sectors, including industrial automation and power supplies. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 53A |
| Supplier Device Package | Module |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 3.5 V @ 100 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 1200 V |
