ND410635
DIODE MOD GP 600V 350A POWRBLOKManufacturer: Powerex Inc.
Categories: Diode Arrays
Quality Control: Learn More

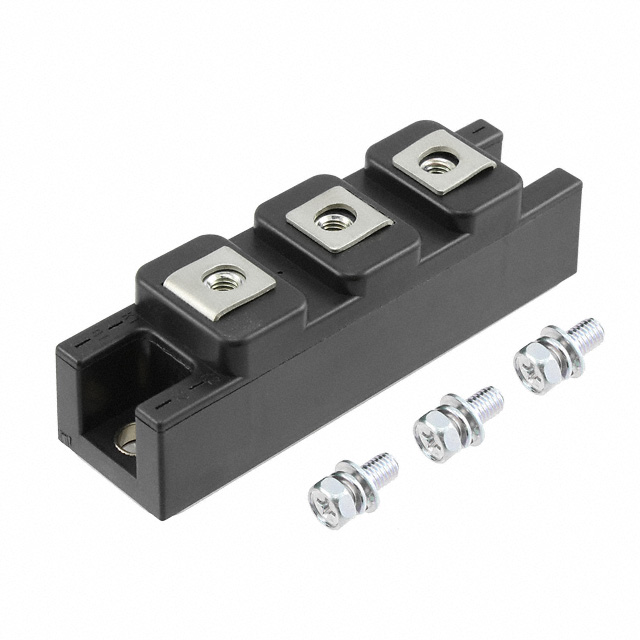

Powerex Inc. ND410635 is a diode module featuring a 1 Pair Series Connection configuration. This component offers a maximum DC Reverse Voltage (Vr) of 600 V and an average rectified current (Io) per diode of 350 A. The forward voltage drop (Vf) is a maximum of 1.2 V at 1000 A. With a reverse leakage current of 30 mA at 600 V, this module is designed for chassis mounting within a POW-R-BLOK™ Module package. It operates across a junction temperature range of -40°C to 150°C and has a standard recovery time (trr) of 10 µs. This component is suitable for applications in industrial power conversion and motor control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 µs |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 350A |
| Supplier Device Package | POW-R-BLOK™ Module |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 1000 A |
| Current - Reverse Leakage @ Vr | 30 mA @ 600 V |
