LDR11466
DIODE MODULE GP 660A POWRBLOKManufacturer: Powerex Inc.
Categories: Diode Arrays
Quality Control: Learn More

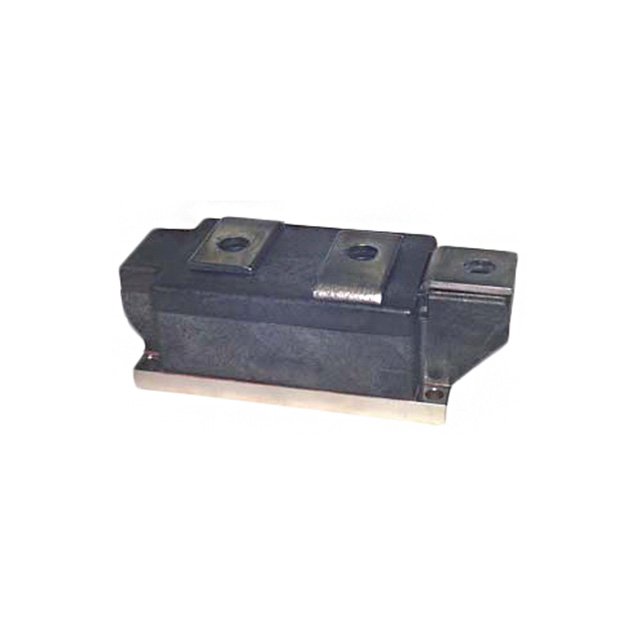

Powerex Inc. LDR11466 is a high-current diode module featuring a POW-R-BLOK™ chassis mount package. This component is configured as a single pair of diodes connected in series, offering a robust solution for power applications. It boasts a continuous average rectified current (Io) of 660A (DC) per diode and a maximum forward voltage drop (Vf) of 1.4V at a significant 1978A forward current. The device exhibits a reverse leakage current of 50mA at 1800V. Designed with standard recovery characteristics exceeding 500ns, the LDR11466 operates efficiently across a junction temperature range of -40°C to 150°C. Its robust construction and high current handling capabilities make it suitable for demanding applications in industries such as industrial power supplies, motor drives, and rail traction.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 660A (DC) |
| Supplier Device Package | POW-R-BLOK™ Module |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 1978 A |
| Current - Reverse Leakage @ Vr | 50 mA @ 1800 V |
