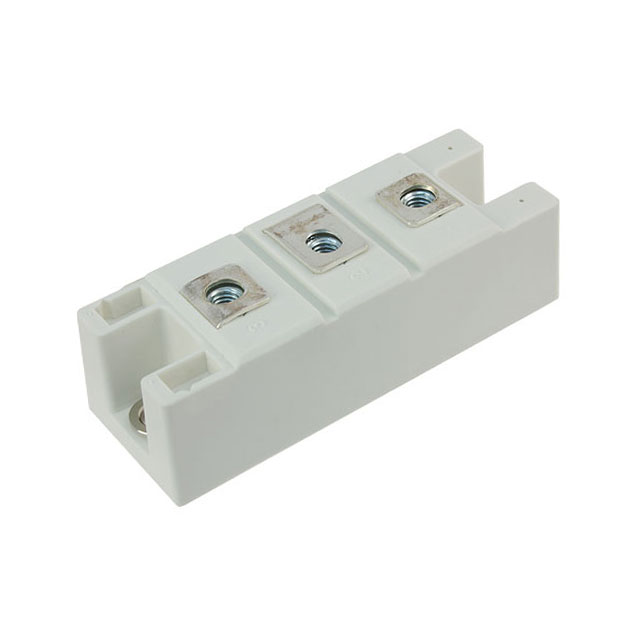

CD611616B
DIODE MOD GP 1600V 160A POWRBLOKManufacturer: Powerex Inc.
Categories: Diode Arrays
Quality Control: Learn More
The Powerex Inc. CD611616B is a diode module featuring a 1 Pair Series Connection configuration. This POW-R-BLOK™ module is designed for chassis mounting and offers a maximum DC reverse voltage rating of 1600V. Each diode in the array is capable of handling an average rectified current of 160A, with a maximum forward voltage of 1.43V at 520A. The reverse leakage current is rated at 20mA at 1600V. Operating across a junction temperature range of -40°C to 150°C, this standard recovery diode module is suitable for applications requiring robust power rectification. This component finds use in industrial power supplies, motor drives, and traction applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 160A |
| Supplier Device Package | POW-R-BLOK™ Module |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.43 V @ 520 A |
| Current - Reverse Leakage @ Vr | 20 mA @ 1600 V |
Request a Quote
