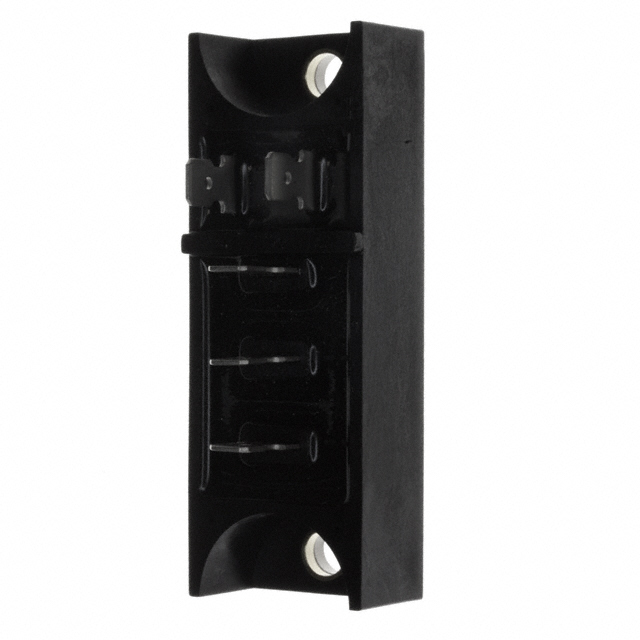

ME700803
BRIDGE RECT 3P 800V 30A MODULEManufacturer: Powerex Inc.
Categories: Bridge Rectifiers
Quality Control: Learn More
Powerex Inc. ME700803 is a three-phase bridge rectifier module designed for robust power rectification applications. This chassis-mount component features a standard diode technology with a peak reverse voltage rating of 800 V and an average rectified forward current capability of 30 A. The forward voltage drop (Vf) is specified at a maximum of 1.1 V at 30 A, with a reverse leakage current of 1.5 mA at 800 V. Operating across a temperature range of -40°C to 150°C (TJ), this module is suitable for demanding environments. Its construction as a module facilitates efficient heat dissipation and simplifies system integration. Applications include industrial power supplies, motor drives, and welding equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Diode Type | Three Phase |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | Module |
| Voltage - Peak Reverse (Max) | 800 V |
| Current - Average Rectified (Io) | 30 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 30 A |
| Current - Reverse Leakage @ Vr | 1.5 mA @ 800 V |
