2SP0320T2A0-12
IC GATE DRVR HALF-BRIDGE MODULEManufacturer: Power Integrations
Categories: Gate Drivers
Quality Control: Learn More
Half-Bridge Gate Driver IC Module
Additional Information
Series: SCALE™-2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 14.5V ~ 15.5V |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 1200 V |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 7ns, 25ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 20A, 20A |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy
2SP0430T2A0C-FF1800R17IP5
SCALE-2 PNP DUAL GATE DRVR 1.7KV
2SP0430T2A0C-FF1500R17IP5
SCALE-2 PNP DUAL GATE DRVR 1.7KV

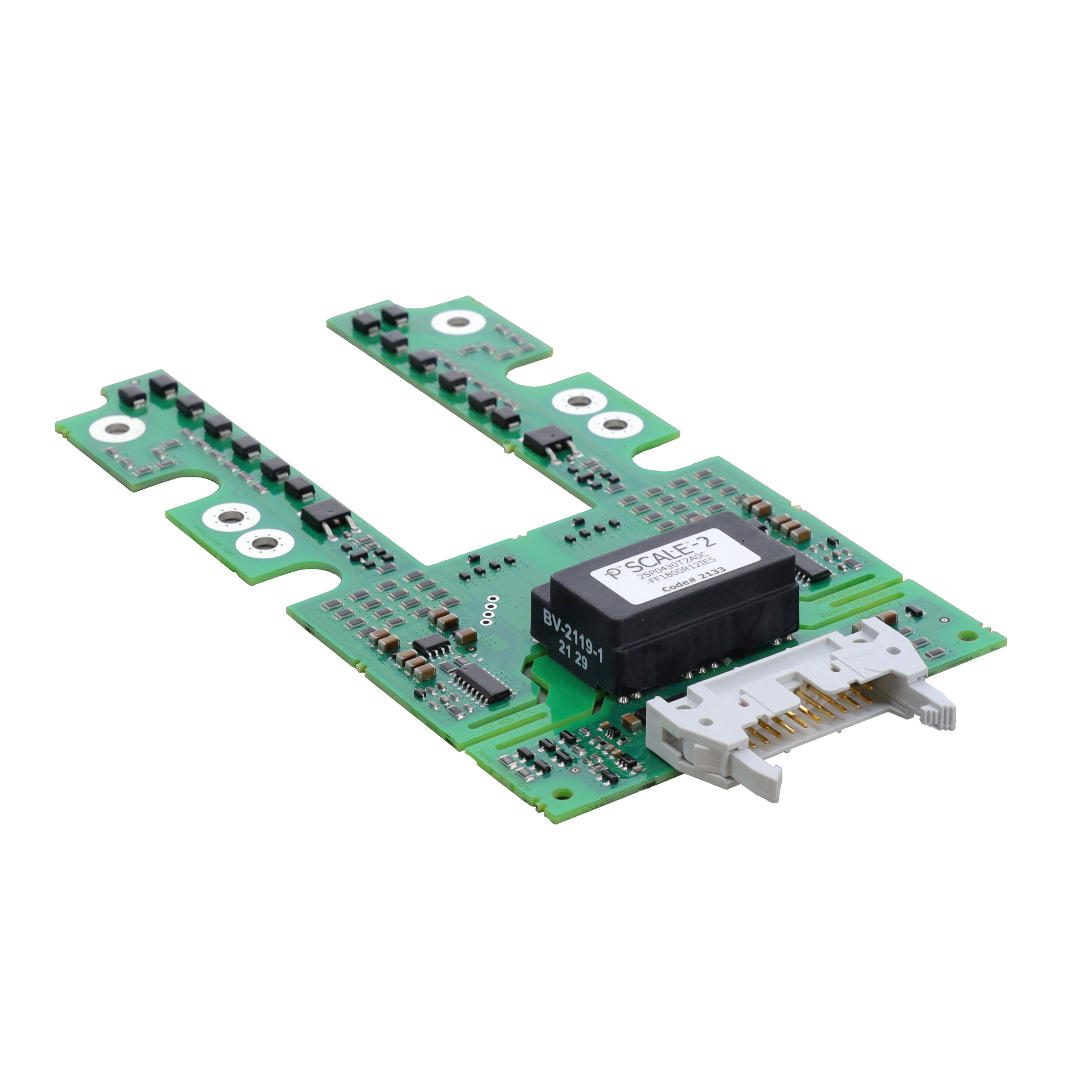

2SP0430T2A0C-FF1800R12IE5
