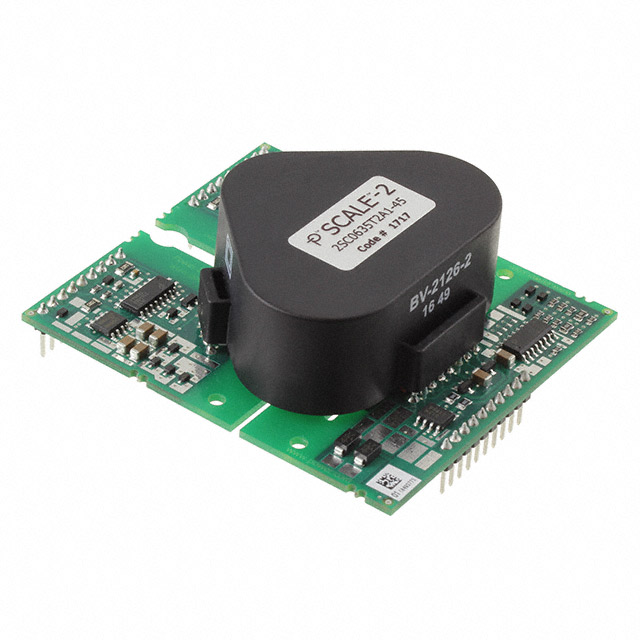

2SC0635T2A1-45
IC GATE DRVR HI/LOW SIDE MODULEManufacturer: Power Integrations
Categories: Gate Drivers
Quality Control: Learn More
The Power Integrations 2SC0635T2A1-45 is a high-performance, two-channel gate driver IC module from the SCALE™-2 series. Designed for driving IGBTs, this module offers independent high-side and low-side gate drive capabilities. It features robust output current with peak source and sink capabilities of 35A, facilitating rapid switching of high-power devices. The module supports a maximum high-side voltage of 4500V, making it suitable for demanding industrial applications. With typical rise and fall times of 20ns and 25ns respectively, the 2SC0635T2A1-45 ensures efficient and precise gate control. Its surface mountable module package is ideal for high-density board designs. This component is commonly utilized in power supply, motor control, and industrial automation sectors. The operating temperature range is -40°C to 85°C.
Additional Information
Series: SCALE™-2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 14.5V ~ 15.5V |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 4500 V |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 20ns, 25ns |
| Channel Type | Independent |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 35A, 35A |
| Programmable | Not Verified |
