2SC0108T2G0C-17
IC GATE DRVR HI/LOW SIDE MODULEManufacturer: Power Integrations
Categories: Gate Drivers
Quality Control: Learn More
Power Integrations 2SC0108T2G0C-17 is a dual-channel, independent gate driver IC module from the SCALE™-2+ series. Designed for driving IGBTs, this module offers high-side or low-side configurations with a maximum high-side bootstrap voltage of 1700V. It delivers a peak output current of 8A in both source and sink for each channel. Typical rise and fall times are rated at 17ns and 15ns respectively. The module operates with a supply voltage range of 14.5V to 15.5V and is suitable for chassis mounting. Operating temperature ranges from -40°C to 85°C. This component finds application in industrial power supplies, motor drives, and renewable energy systems.
Additional Information
Series: SCALE™-2+RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 14.5V ~ 15.5V |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 1700 V |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 17ns, 15ns |
| Channel Type | Independent |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 2 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 8A, 8A |
Request a Quote
Clients Also Buy

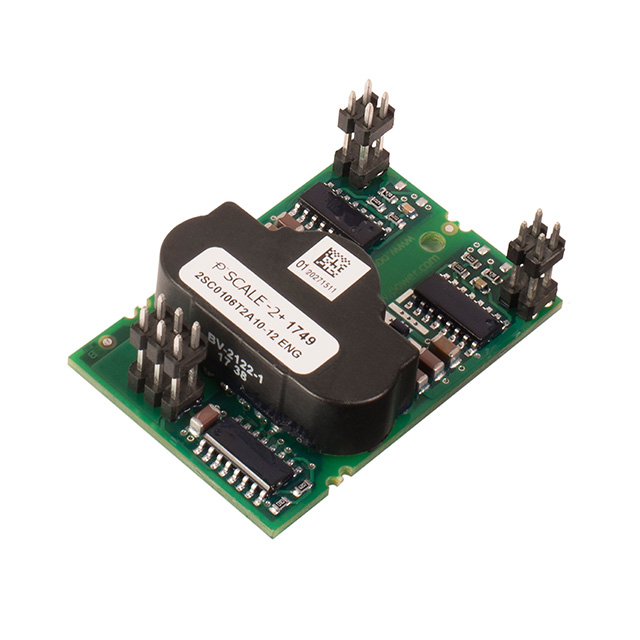

2SC0106T2A1-12
IC GATE DRVR HALF-BRIDGE MODULE
2SC0108T2H0-17
IC GATE DRVR HI/LOW SIDE MODULE

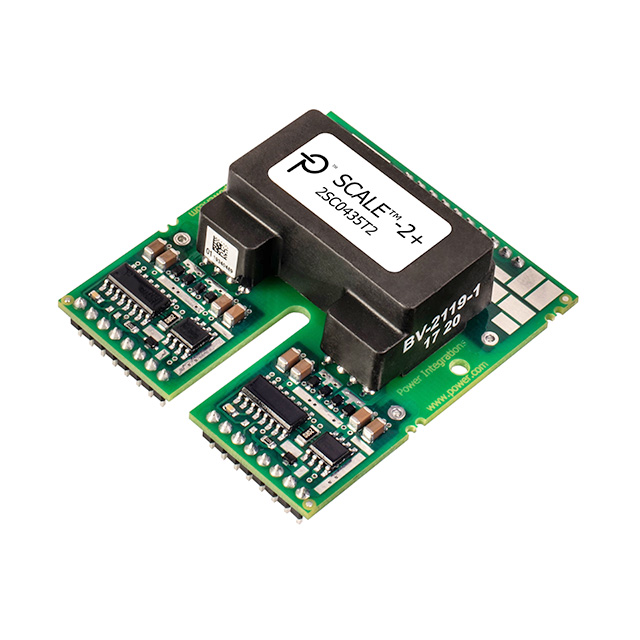

2SC0435T2H0-17
