1SC0450V2B0-65
IC GATE DRVR HI/LOW SIDE MODULEManufacturer: Power Integrations
Categories: Gate Drivers
Quality Control: Learn More

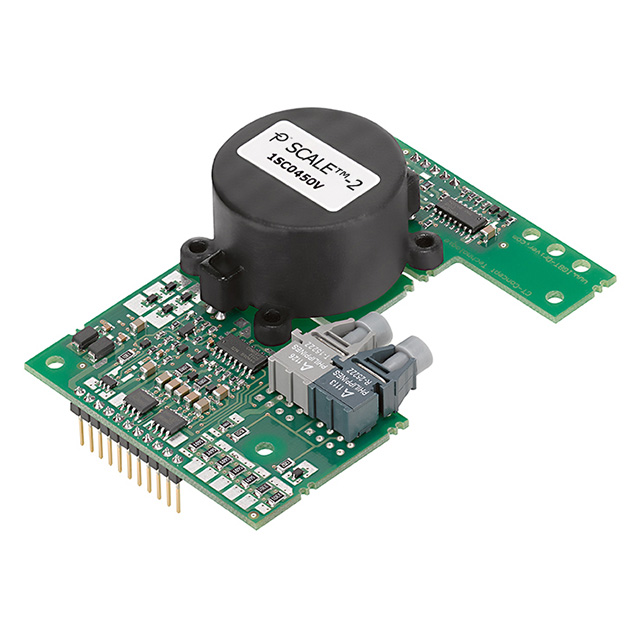

Power Integrations 1SC0450V2B0-65 is a single-channel gate driver IC module from the SCALE™-2 series. Designed for high-side or low-side operation, this component is specifically engineered to drive IGBT gate terminals, offering robust performance in demanding applications. It features a high-side voltage capability of up to 6500V, ensuring suitability for high-voltage power conversion systems. The module delivers exceptional peak output currents of 50A sourcing and 50A sinking, facilitating rapid switching of power transistors. Typical rise and fall times are 30ns and 25ns respectively, contributing to efficient power stage operation. The supply voltage range is 14.5V to 15.5V. This device is commonly employed in industries such as industrial power supplies, electric vehicle charging infrastructure, and renewable energy systems. The 1SC0450V2B0-65 is supplied in a module package for surface mounting.
Additional Information
Series: SCALE™-2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 14.5V ~ 15.5V |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 6500 V |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 30ns, 25ns |
| Channel Type | Single |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 50A, 50A |
| Programmable | Not Verified |
