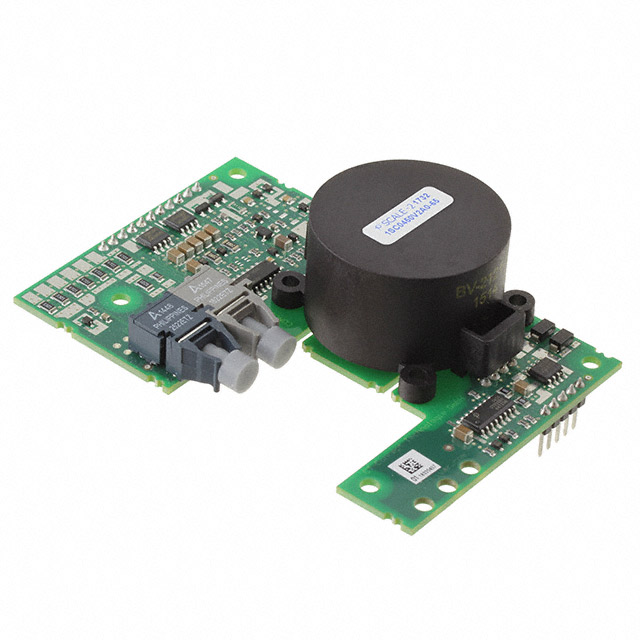

1SC0450V2A0-65
IC GATE DRVR HI/LOW SIDE MODULEManufacturer: Power Integrations
Categories: Gate Drivers
Quality Control: Learn More
The Power Integrations 1SC0450V2A0-65 is a single-channel, high-performance gate driver module from the SCALE™-2 family. This highly integrated device is designed for driving IGBTs and offers robust performance with a peak output current of 50A source and 50A sink. Its flexible configuration supports both high-side and low-side driving with a maximum bootstrap voltage of 6500V. The module exhibits typical rise and fall times of 30ns and 25ns respectively, ensuring efficient switching. Operating within a supply voltage range of 14.5V to 15.5V, it functions reliably across an ambient temperature range of -40°C to 85°C. This component is commonly utilized in demanding applications within the industrial power sector, including motor drives, uninterruptible power supplies (UPS), and renewable energy systems. The 1SC0450V2A0-65 is supplied in a module package, suitable for surface mount applications.
Additional Information
Series: SCALE™-2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 14.5V ~ 15.5V |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 6500 V |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 30ns, 25ns |
| Channel Type | Single |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 50A, 50A |
| Programmable | Not Verified |
