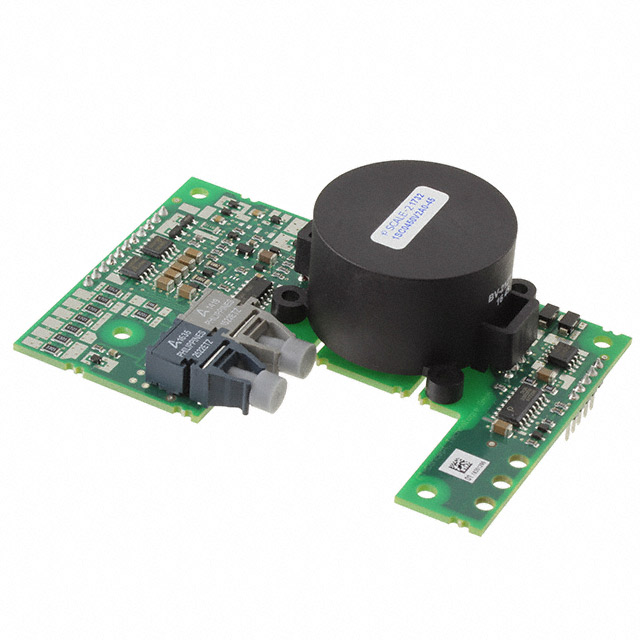

1SC0450V2A0-45
IC GATE DRVR HI/LOW SIDE MODULEManufacturer: Power Integrations
Categories: Gate Drivers
Quality Control: Learn More
Power Integrations 1SC0450V2A0-45 is a single-channel SCALE™-2 gate driver module designed for high-side or low-side driving of IGBTs. This module delivers robust performance with peak output currents of 50A source and 50A sink, facilitating efficient switching. It supports high-side operation up to a maximum bootstrap voltage of 4500V, enabling its use in demanding high-voltage applications. The device exhibits typical 30ns rise time and 25ns fall time characteristics, crucial for precise IGBT control. Operating within a supply voltage range of 14.5V to 15.5V, the 1SC0450V2A0-45 is suitable for industrial power conversion, electric vehicle powertrains, and renewable energy systems. It is supplied in a module package suitable for surface mounting and operates across a temperature range of -40°C to 85°C.
Additional Information
Series: SCALE™-2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 14.5V ~ 15.5V |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 4500 V |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 30ns, 25ns |
| Channel Type | Single |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 50A, 50A |
| Programmable | Not Verified |
