1SC0450E2B0-65
IC GATE DRVR HI/LOW SIDE MODULEManufacturer: Power Integrations
Categories: Gate Drivers
Quality Control: Learn More

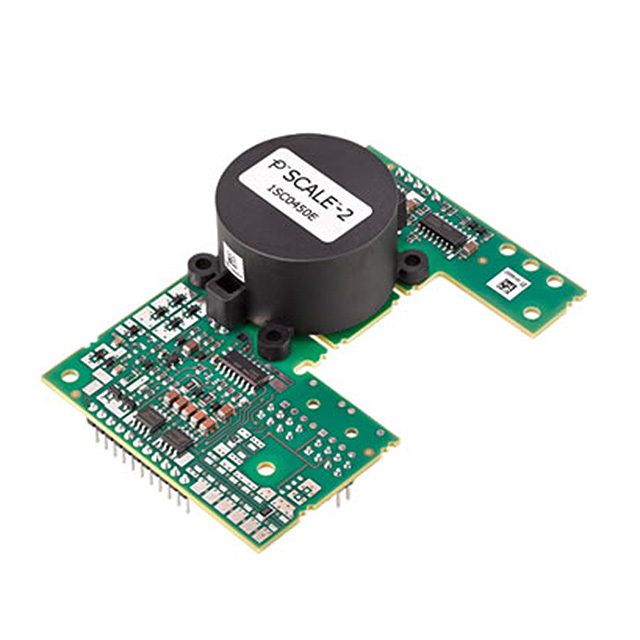

The Power Integrations 1SC0450E2B0-65 is a single-channel SCALE™-2 series gate driver IC module designed for high-side or low-side driving of IGBTs. This module delivers exceptional performance with peak output currents of 50A source and 50A sink, coupled with fast rise and fall times of 30ns and 25ns respectively. It supports a high-side voltage of up to 6500V, making it suitable for demanding power applications. The device operates within a supply voltage range of 14.5V to 15.5V and is specified for operation across an ambient temperature range of -40°C to 85°C. Its surface mount configuration and module package are optimized for efficient thermal management and ease of integration in power electronics systems. Applications include motor drives, industrial power supplies, and renewable energy systems.
Additional Information
Series: SCALE™-2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 14.5V ~ 15.5V |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 6500 V |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 30ns, 25ns |
| Channel Type | Single |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 50A, 50A |
| Programmable | Not Verified |
