1SC0450E2A0-65
IC GATE DRVR HI/LOW SIDE MODULEManufacturer: Power Integrations
Categories: Gate Drivers
Quality Control: Learn More

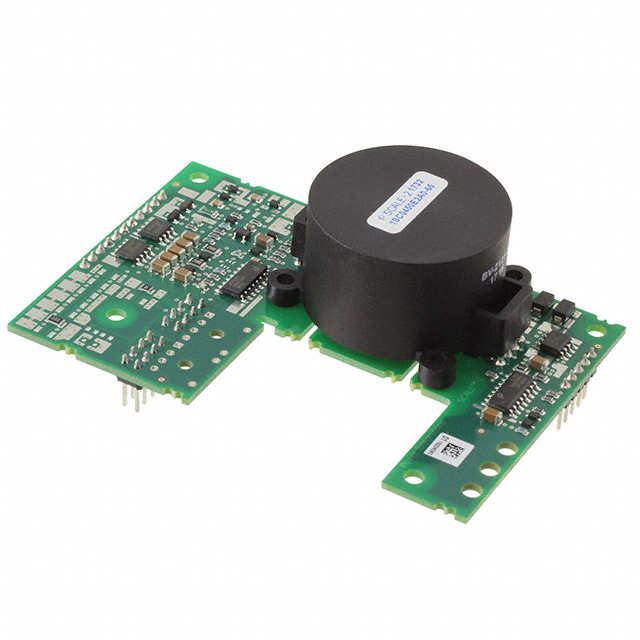

Power Integrations 1SC0450E2A0-65 is a single-channel SCALE™-2 series IGBT gate driver module designed for high-side or low-side configurations. This Power Integrations module provides a robust 50A peak output current for both source and sink, facilitating efficient driving of high-power IGBTs. With a maximum high-side voltage capability of 6500V, it is suitable for demanding applications. The module features a nominal supply voltage range of 14.5V to 15.5V and exhibits typical rise and fall times of 30ns and 25ns, respectively. Operating across an ambient temperature range of -40°C to 85°C, the 1SC0450E2A0-65 is a surface-mount component ideal for use in electric vehicle powertrains, renewable energy inverters, and industrial motor drives.
Additional Information
Series: SCALE™-2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 14.5V ~ 15.5V |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 6500 V |
| Supplier Device Package | Module |
| Rise / Fall Time (Typ) | 30ns, 25ns |
| Channel Type | Single |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 50A, 50A |
| Programmable | Not Verified |
