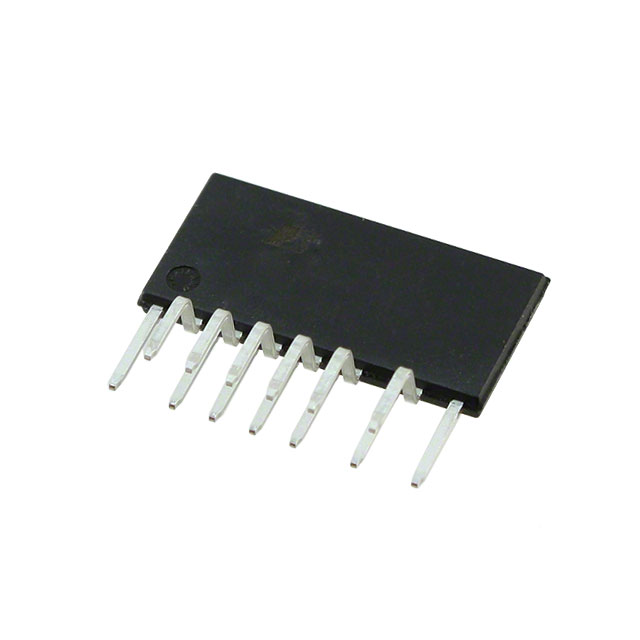

LCS703HG
IC HALF BRIDGE DRIVER ESIP16JManufacturer: Power Integrations
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver General Purpose Power MOSFET eSIP-16J
Additional Information
Series: HiperLCS™RoHS Status: RoHS CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Auto Restart, Slew Rate Controlled |
| Packaging | Tube |
| Package / Case | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads |
| Mounting Type | Through Hole |
| Interface | ON/OFF |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 11.4V ~ 15V |
| Rds On (Typ) | 600mOhm |
| Applications | General Purpose |
| Current - Output / Channel | - |
| Current - Peak Output | 12.9A |
| Technology | Power MOSFET |
| Voltage - Load | 11.4V ~ 15V |
| Supplier Device Package | eSIP-16J |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO |
| Load Type | Inductive |
