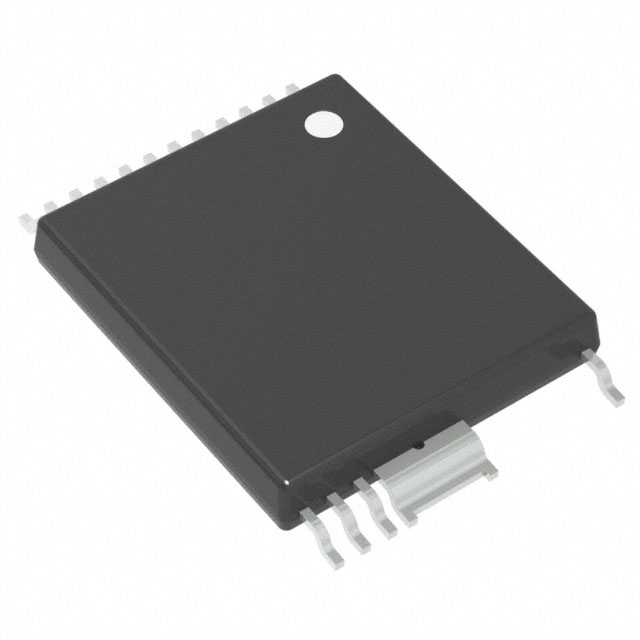

BRD1167C-TL
IC HALF BRIDG DRV 11.5A INSOP24CManufacturer: Power Integrations
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge Driver DC Motors, General Purpose Power MOSFET InSOP-24C
Additional Information
Series: BridgeSwitchRoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Bootstrap Circuit |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerSMD Module (0.425"", 10.80mm Width), 17 Leads |
| Mounting Type | Surface Mount |
| Interface | Logic, PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | - |
| Rds On (Typ) | 470mOhm LS + HS |
| Applications | DC Motors, General Purpose |
| Current - Output / Channel | 11.5A |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | 600V |
| Supplier Device Package | InSOP-24C |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Capacitive and Resistive |
