TOP258MN

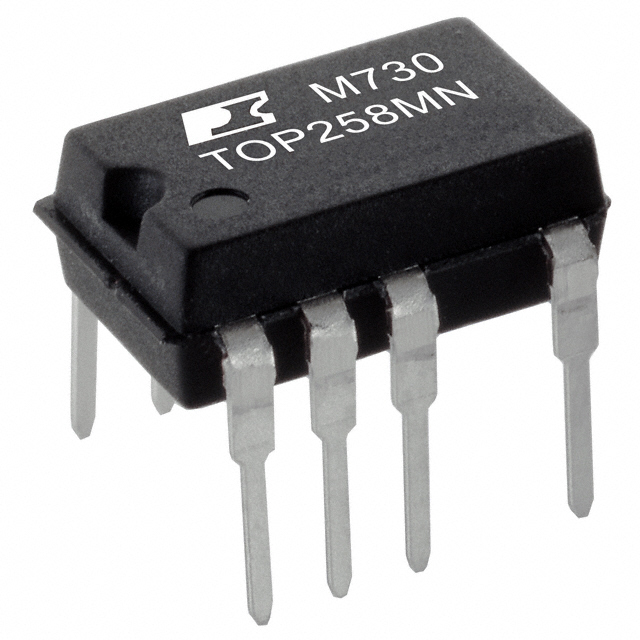

IC OFFLINE SW FLYBACK 10CSDIPManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The Power Integrations TOP258MN is an offline switcher IC from the TOPSwitch®-HX series. This component is designed for flyback topology applications, operating at a switching frequency of 66kHz. It features an integrated switch with a breakdown voltage of 700V and a maximum power output of 48W. The device offers robust fault protection, including current limiting, over-temperature, and over-voltage protection. Packaged in a 10-SDIP (0.300", 7.62mm) with 9 leads, it is suitable for through-hole mounting. The TOP258MN is commonly utilized in AC-DC power supplies for consumer electronics, industrial automation, and lighting applications. Its isolated output and high efficiency make it a key component in power conversion solutions. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: TOPSwitch®-HXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-SDIP (0.300"", 7.62mm), 9 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | SDIP-10C |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Power (Watts) | 48 W |
