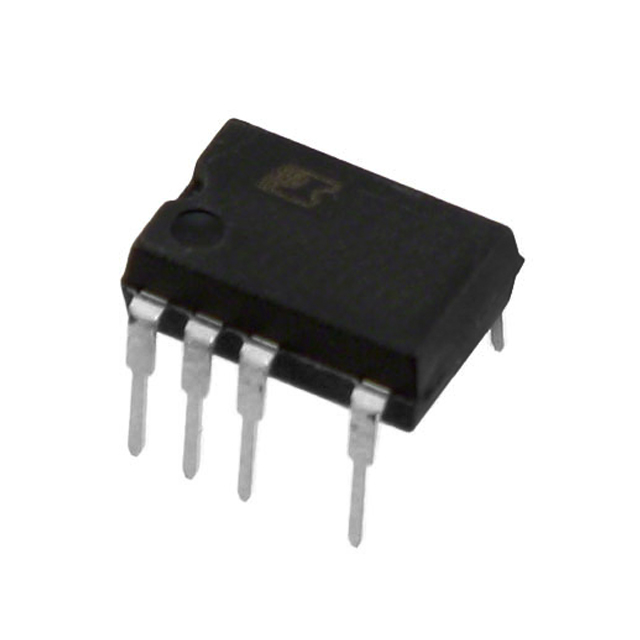

TOP258MG
IC OFFLINE SW FLYBACK 10CSDIPManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Power Integrations TOPSwitch®-HX series TOP258MG is an offline converter IC designed for flyback topologies. This 700V device operates at a 66kHz switching frequency, delivering up to 48W. It features integrated switching with extensive fault protection including current limiting, over-temperature, and over-voltage protection. The TOP258MG is housed in a 10-SDIP (0.300", 7.62mm) package with 9 leads and is suitable for through-hole mounting. Its isolated output and high breakdown voltage make it ideal for applications in consumer electronics, industrial power supplies, and adapter markets. Operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: TOPSwitch®-HXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-SDIP (0.300"", 7.62mm), 9 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | SDIP-10C |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Power (Watts) | 48 W |
Request a Quote
Clients Also Buy

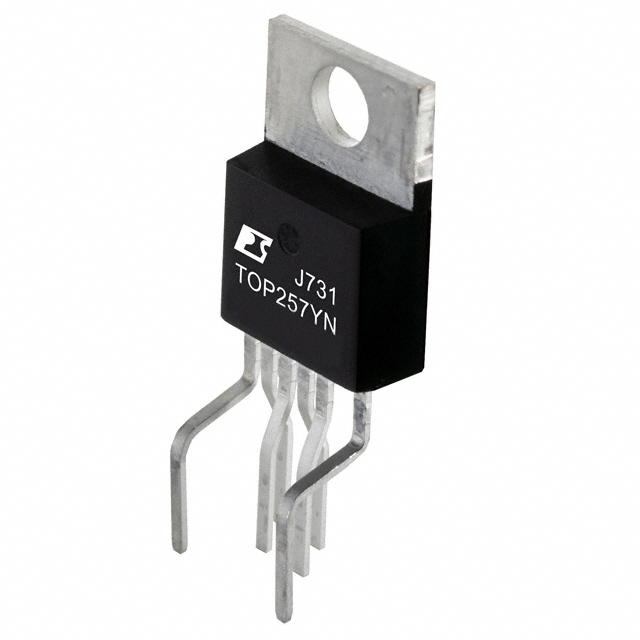

TOP257YN
IC OFFLINE SW FLYBACK TO220-7C
TOP261EN
IC OFFLINE SWITCH FLYBACK 7ESIP

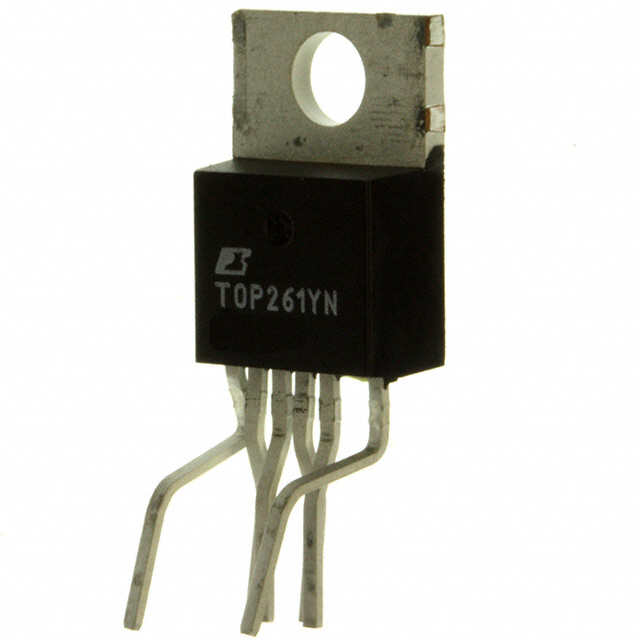

TOP261YN
