TOP257MN
IC OFFLINE SW FLYBACK 10CSDIPManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More

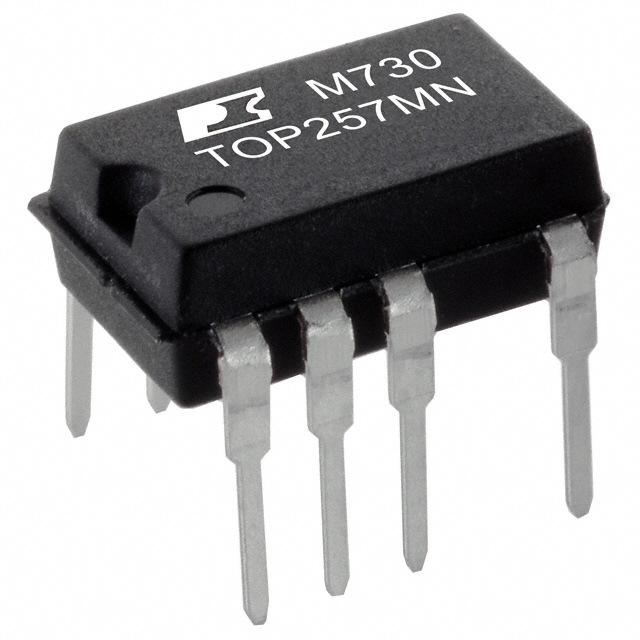

Power Integrations TOPSwitch®-HX TOP257MN is a highly integrated offline switcher for flyback topologies, operating at 66kHz with a 78% duty cycle. This 700V device features integrated current limiting, over-temperature, and over-voltage fault protection for robust operation. The SDIP-10C package with 9 leads is designed for through-hole mounting. With an output power capability of 41W and isolated output, the TOP257MN is suitable for AC-DC converters in consumer electronics, industrial automation, and lighting applications. This component is supplied in a tube.
Additional Information
Series: TOPSwitch®-HXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-SDIP (0.300"", 7.62mm), 9 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | SDIP-10C |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Power (Watts) | 41 W |
