TOP256MN
IC OFFLINE SW FLYBACK 10CSDIPManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More

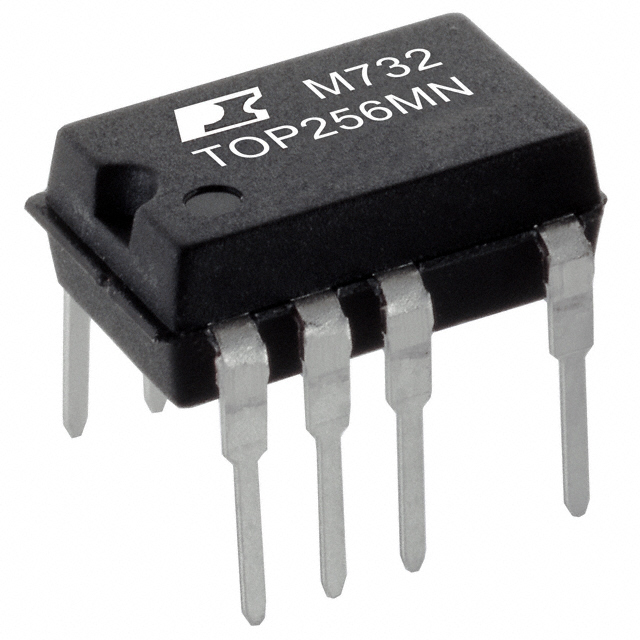

Power Integrations TOPSwitch®-HX series TOP256MN is an offline switcher IC for flyback topology, operating at 66kHz. This 700V device is housed in a 10-SDIP (0.300", 7.62mm) package with 9 leads. It integrates a switching element and offers robust fault protection including current limiting, over-temperature, and over-voltage safeguards. The TOP256MN is suitable for power supplies up to 34W and is designed for through-hole mounting. Its isolated output is a key feature for various AC-DC conversion applications. This component is commonly utilized in consumer electronics and industrial power systems.
Additional Information
Series: TOPSwitch®-HXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-SDIP (0.300"", 7.62mm), 9 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | SDIP-10C |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Power (Watts) | 34 W |
