TOP255MN

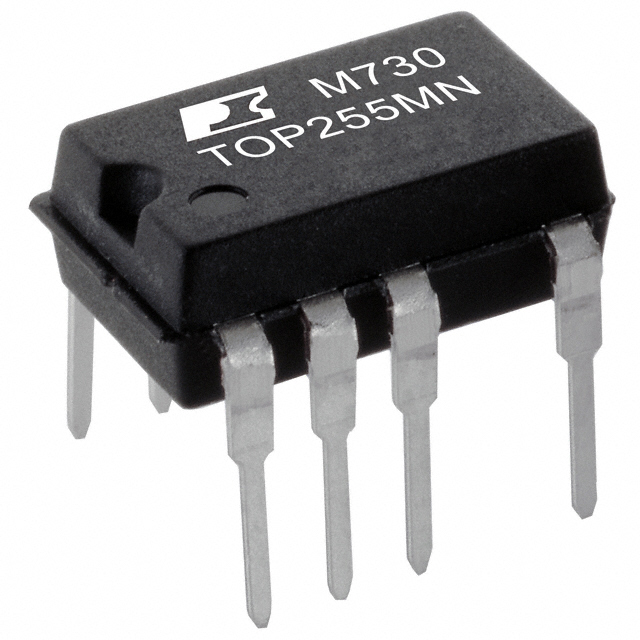

IC OFFLINE SW FLYBACK 10CSDIPManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Power Integrations TOPSwitch®-HX TOP255MN is an offline switcher IC designed for high-efficiency flyback converter applications. This 700V device integrates a power MOSFET, PWM controller, fault protection features including current limiting, over-temperature, and over-voltage protection, and a high-frequency oscillator. Operating at a 66kHz switching frequency with an internal switch, it supports up to 30W output power. The device is housed in a 10-CSDIP package with through-hole mounting. The TOPSwitch®-HX series is widely utilized in power supplies for consumer electronics, industrial control systems, and LED lighting applications. Its isolated output and robust protection mechanisms ensure reliable operation in demanding environments.
Additional Information
Series: TOPSwitch®-HXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-SDIP (0.300"", 7.62mm), 9 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | SDIP-10C |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Power (Watts) | 30 W |
