TOP253MN

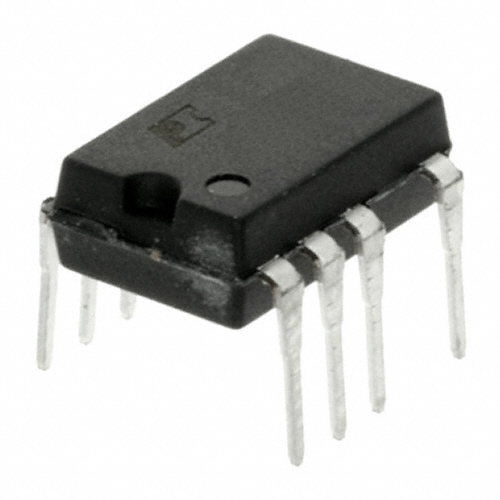

IC OFFLINE SW FLYBACK 10CSDIPManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Power Integrations TOPSwitch®-HX series TOP253MN is a highly integrated offline switcher IC designed for flyback topologies. This device offers a 700V breakdown voltage and a 66kHz switching frequency, enabling efficient power conversion up to 25W. Key fault protection features include current limiting, over-temperature protection, and over-voltage protection, ensuring robust operation. The TOP253MN integrates the switching element, simplifying design and reducing component count. Its 10-CSDIP package with 9 leads is suitable for through-hole mounting. This component finds application in power supplies across various industries, including consumer electronics and industrial automation, requiring isolated outputs. The operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: TOPSwitch®-HXRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-SDIP (0.300"", 7.62mm), 9 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | SDIP-10C |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Power (Watts) | 25 W |
