TOP245YN
IC OFFLINE SW FLYBACK TO220-7CManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 66kHz ~ 132kHz TO-220-7C
Additional Information
Series: TOPSwitch®-GXRoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: Not For New DesignsPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-7 Formed Leads, 6 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 66.5% |
| Frequency - Switching | 66kHz ~ 132kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | TO-220-7C |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control |
| Power (Watts) | 85 W |
Request a Quote
Clients Also Buy
TOP242GN-TL
IC OFFLINE SWIT OVP UVLO HV 8SMD
TOP243GN-TL
IC OFFLINE SWITCH FLYBACK 8SMD

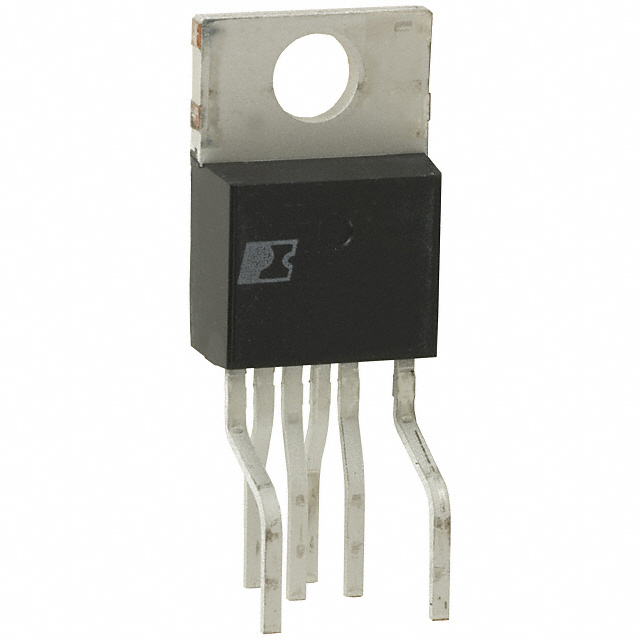

TOP243YN
