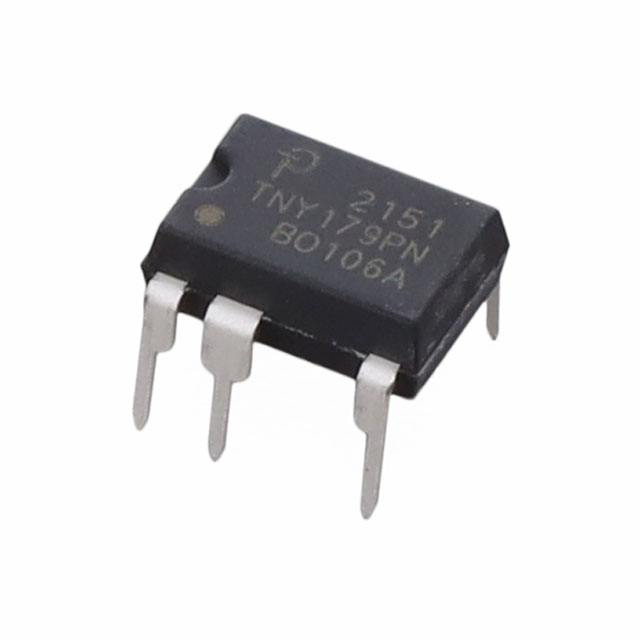

TNY179PN
25 W (85-265 VAC) 32 W (230 VAC)Manufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback, Secondary Side SR Topology 132kHz 8-PDIP-C
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 65% |
| Frequency - Switching | 132kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Output Isolation | Isolated |
| Topology | Flyback, Secondary Side SR |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | 8-PDIP-C |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | EN |
| Power (Watts) | 32 W |
