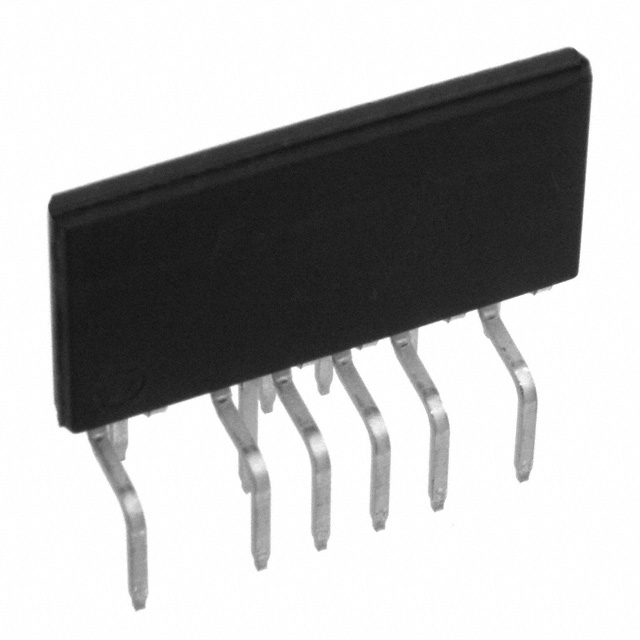

TFS764HG
IC OFFLIN CONV MULT TOP ESIP-16BManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Power Integrations HiperTFS® TFS764HG is an offline flyback, forward topology converter operating at 66kHz. This eSIP-16B packaged component offers integrated switching capabilities with a maximum breakdown voltage of 530V and 725V. It features advanced control with EN functionality and provides robust fault protection including current limiting, over temperature, over voltage, and short circuit protection. The device operates within a junction temperature range of -40°C to 150°C and requires a Vcc/Vdd supply between 11.1V and 13.4V, with a start-up voltage of 12.1V. With a 70% duty cycle and isolated output, the TFS764HG is suitable for high-power applications up to 414W, finding use in power supplies for consumer electronics and industrial equipment. The component is supplied in a tube.
Additional Information
Series: HiperTFS®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SSIP, 12 Leads, Exposed Pad, Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 530V, 725V |
| Output Isolation | Isolated |
| Topology | Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | 11.1V ~ 13.4V |
| Supplier Device Package | eSIP-16B |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Voltage - Start Up | 12.1 V |
| Control Features | EN |
| Power (Watts) | 414 W |
