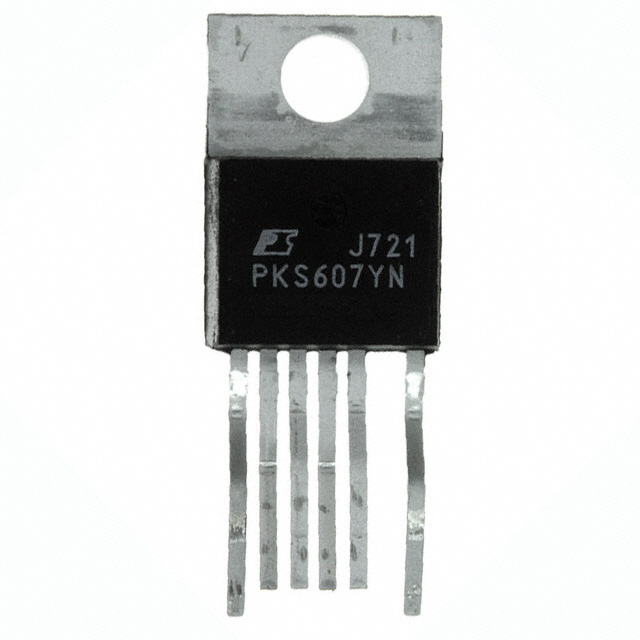

PKS607YN
IC OFFLINE SW FLYBACK TO220-7CManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Power Integrations' PeakSwitch® PKS607YN is an offline flyback converter IC packaged in a TO-220-7C. This component integrates a high-voltage power switch, operating at a switching frequency of 277kHz, enabling efficient power conversion up to 126W. The design incorporates robust fault protection, including current limiting, overload, and over-temperature protection, ensuring system reliability. Its isolated output and flyback topology are well-suited for applications requiring efficient power supply solutions in consumer electronics, industrial automation, and lighting systems. The through-hole mounting and TO-220-7 Formed Leads package facilitate straightforward integration into existing designs. Operating across a wide temperature range from -40°C to 150°C (TJ), the PKS607YN offers a 700V breakdown voltage.
Additional Information
Series: PeakSwitch®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-7 Formed Leads, 6 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 65% |
| Frequency - Switching | 277kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | TO-220-7C |
| Fault Protection | Current Limiting, Over Load, Over Temperature |
| Control Features | EN |
| Power (Watts) | 126 W |
