LNK6668V
IC OFFLINE SWITCH FLYBACK 12EDIPManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 120kHz ~ 136kHz eDIP-12
Additional Information
Series: LinkSwitch™-HPRoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

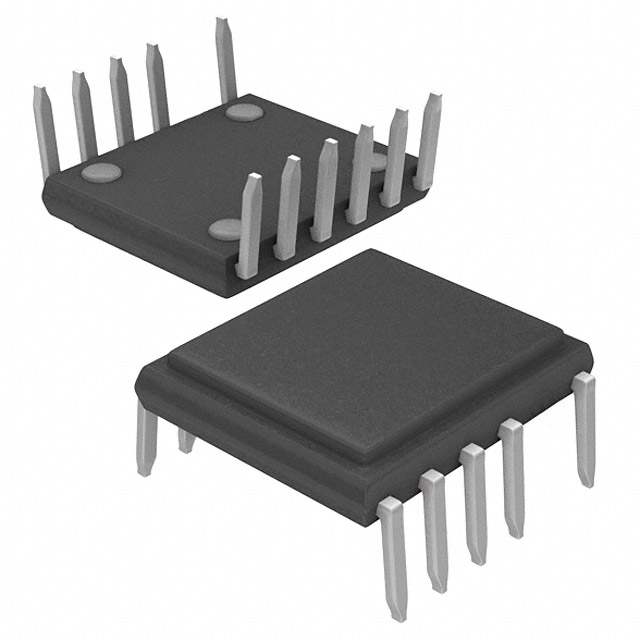

| Package / Case | 12-SDIP (0.412"", 10.46mm), 11 Leads, Exposed Pad |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | eDIP-12 |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Power (Watts) | 47 W |
