LNK4302S-TL

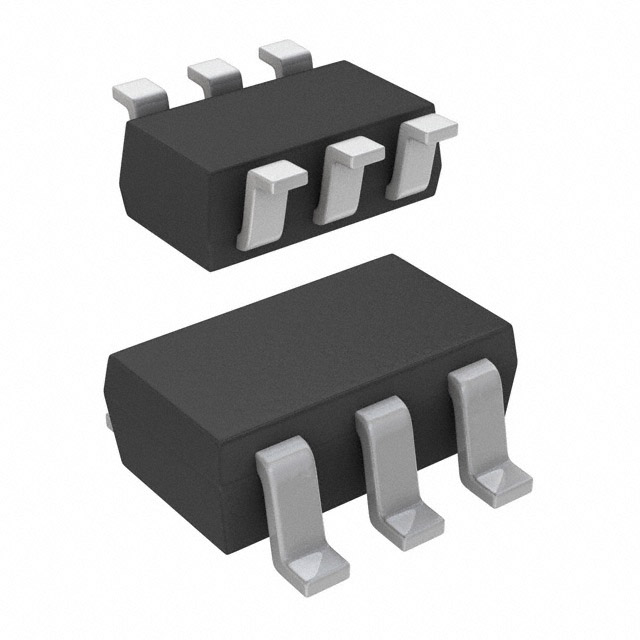

IC OFFLINE SW FLYBACK SOT23-6Manufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Power Integrations LinkSwitch™-4 LNK4302S-TL is a high-performance offline flyback converter IC operating at 65kHz. This component, packaged in a SOT23-6, is designed for isolated power supply applications up to 5W. It integrates essential control and protection features including over-temperature, over-voltage, and short-circuit protection. The LNK4302S-TL supports a supply voltage range of 5V to 16.5V, with an internal switch not present. Its robust design makes it suitable for use in consumer electronics, industrial control, and lighting applications requiring efficient and reliable AC-DC conversion.
Additional Information
Series: LinkSwitch™-4RoHS Status: RoHS CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Duty Cycle | - |
| Frequency - Switching | 65kHz |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 5V ~ 16.5V |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Power (Watts) | 5 W |
Request a Quote
Clients Also Buy
LNK4023D-TL
IC OFFLINE SWITCH FLYBACK 8SO
LNK4003D-TL
IC OFFLINE SWITCH FLYBACK 8SO

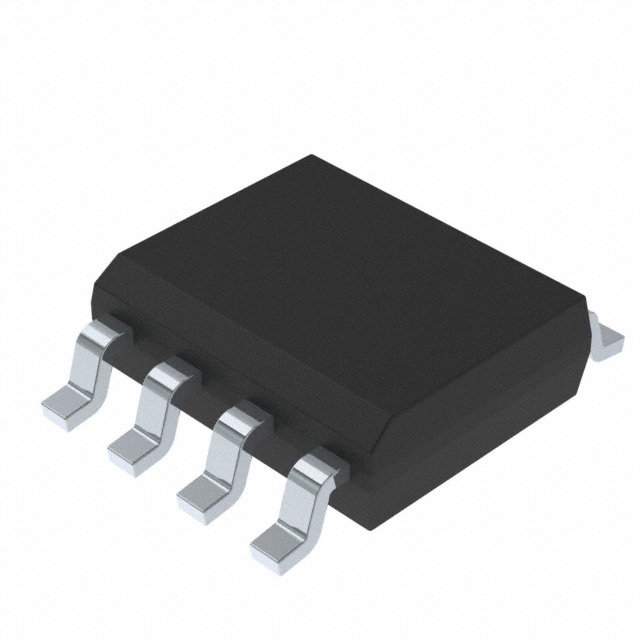

LNK4024D-TL
