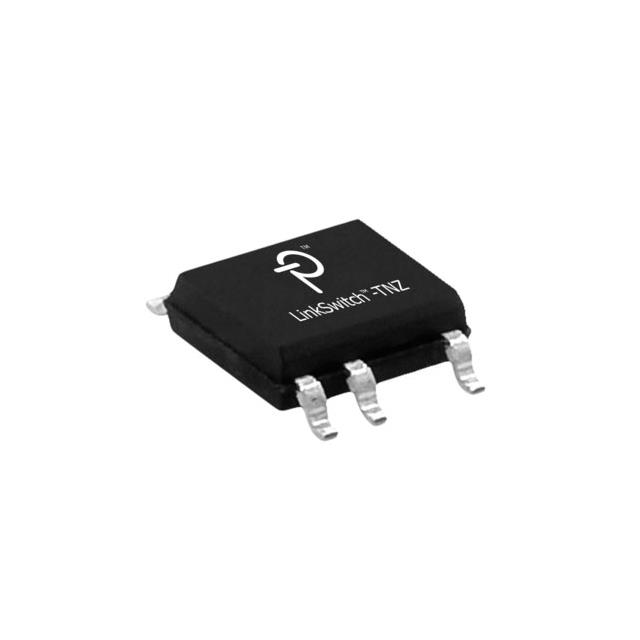

LNK3304D-TL
IC OFFLINE SWITCH MULT TOP 8SOManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Buck, Buck-Boost, Flyback Topology 66kHz SO-8C
Additional Information
Series: LinkSwitch®-TNZRoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width), 7 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Duty Cycle | 69% |
| Frequency - Switching | 66kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Output Isolation | Isolated |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | SO-8C |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit |
| Voltage - Start Up | 18 V |
| Control Features | EN, Soft Start |
| Power (Watts) | 6 W |
Request a Quote
