INN3074M-H606-TL
INNOSWITCH3-TN 16 W 85-265 VACManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback, Secondary Side SR Topology 25kHz ~ 95kHz MinSOP-16A
Additional Information
Series: InnoSwitch™4-TNRoHS Status: unknownManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-PowerSMD Module (0.354"", 9.00mm Width), 12 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Duty Cycle | - |
| Frequency - Switching | 25kHz ~ 95kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Output Isolation | Either |
| Topology | Flyback, Secondary Side SR |
| Voltage - Supply (Vcc/Vdd) | 3.8V |
| Supplier Device Package | MinSOP-16A |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Voltage - Start Up | 650 mV |
| Control Features | Frequency Control |
| Power (Watts) | 21 W |
Request a Quote
Clients Also Buy

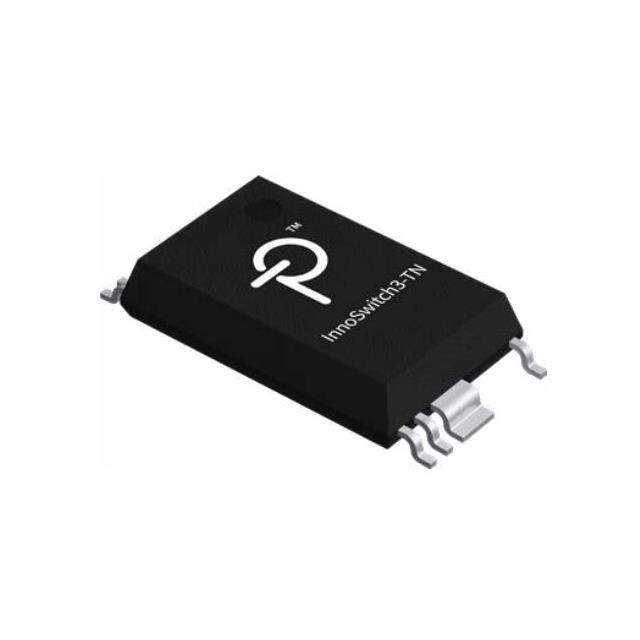

INN3072M-H606-TL
