INN2024K

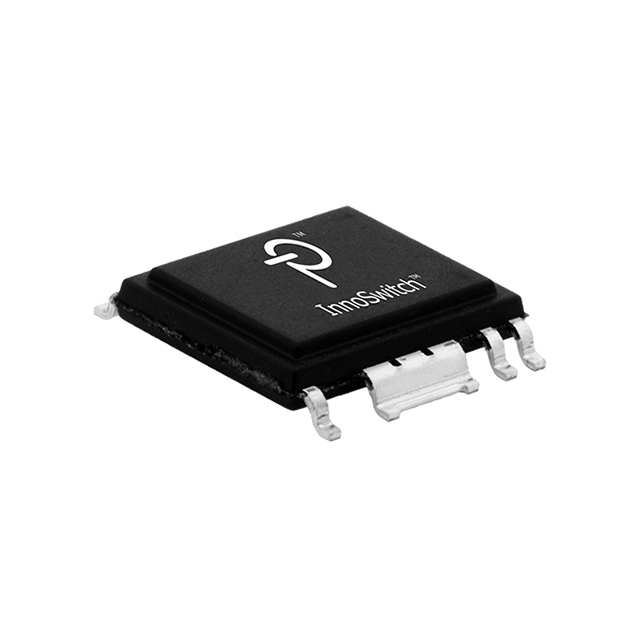

IC OFFLINE SW MULT TOP 16ESOPManufacturer: Power Integrations
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Power Integrations InnoSwitch™-CH series offline flyback converter, part number INN2024K. This component is designed for secondary-side SR topology applications operating at a 100kHz switching frequency. It features integrated switching capabilities and a 650V breakdown voltage. Fault protection includes current limiting, over-temperature, and over-voltage protection. The device offers 15W of power and an isolated output. Packaged in an eSOP-R16B (16-PowerSOIC), this surface-mount component is suitable for applications in consumer electronics and power supplies requiring efficient offline conversion. Operating temperature range is -40°C to 85°C.
Additional Information
Series: InnoSwitch™-CHRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-PowerSOIC (0.350"", 8.89mm Width), 15 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | 60% |
| Frequency - Switching | 100kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Output Isolation | Isolated |
| Topology | Flyback, Secondary Side SR |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | eSOP-R16B |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Power (Watts) | 15 W |
