2203547
GRAPHIC DISPLAY FSTN - 4.6Manufacturer: Phoenix Contact
Categories: LCD, OLED, Graphic
Quality Control: Learn More

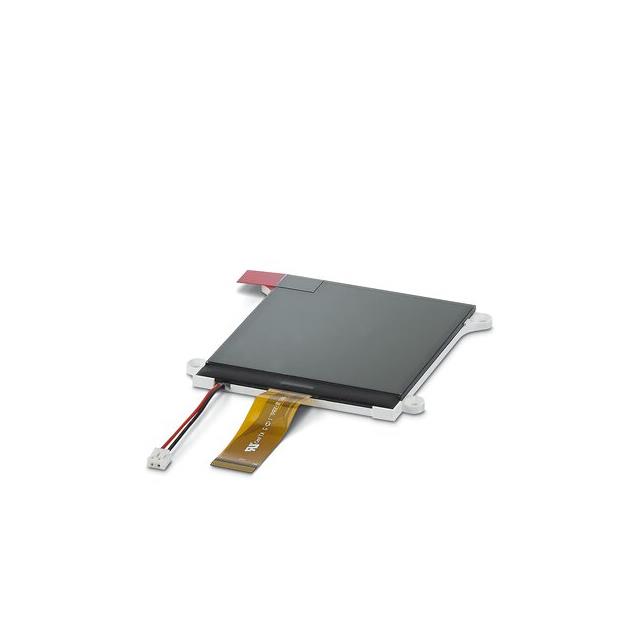

Phoenix Contact DL Series graphic display module, part number 2203547. This transflective FSTN LCD offers a 128 x 128 dot resolution across a 4.6-inch diagonal viewing area (117.00mm). Featuring a white LED backlight, the module supports both parallel and serial interfaces for flexible integration. The display utilizes a Film Super-Twisted Nematic technology for optimal readability in various lighting conditions, with a viewing area measuring 108.00mm wide by 64.80mm high. The integrated AIP31565CR controller simplifies interface management. This component is commonly employed in industrial automation, measurement and control equipment, and general electronic instrumentation. Supplied in bulk packaging.
Additional Information
Series: DLRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - White |
| Interface | Parallel, Serial |
| Viewing Area | 108.00mm W x 64.80mm H |
| Dot Pixels | 128 x 128 |
| Controller Type | Aip31565CR |
| Diagonal Screen Size | 4.6"" (117.00mm) |
| Background Color | - |
| Graphics Color | - |
| Touchscreen | - |
