2866802
AC/DC DIN RAIL SUPPLY 24V 960WManufacturer: Phoenix Contact
Categories: Industrial, DIN Rail Power Supplies
Quality Control: Learn More
Additional Information
Series: QuintRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BoxDownload Free CAD Model:
Technical Details:
| Power (Watts) | 960W |
| Features | Adjustable Output, IP20, Load Sharing, Universal Input |
| Packaging | Box |
| Size / Dimension | 6.93"" L x 3.78"" W x 5.12"" H (176.0mm x 96.0mm x 130.0mm) |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Applications | ITE (Commercial) |
| Input Type | AC or DC |
| Approval Agency | CB, cULus, cURus |
| Efficiency | 94% |
| Current - Output (Max) | 40A |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Number of Outputs | 1 |
| Voltage - Isolation | 4 kV |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| AC Voltage - Input | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) |
| DC Voltage - Input (Min) | 450V |
| DC Voltage - Input (Max) | 800V |
Request a Quote
Clients Also Buy

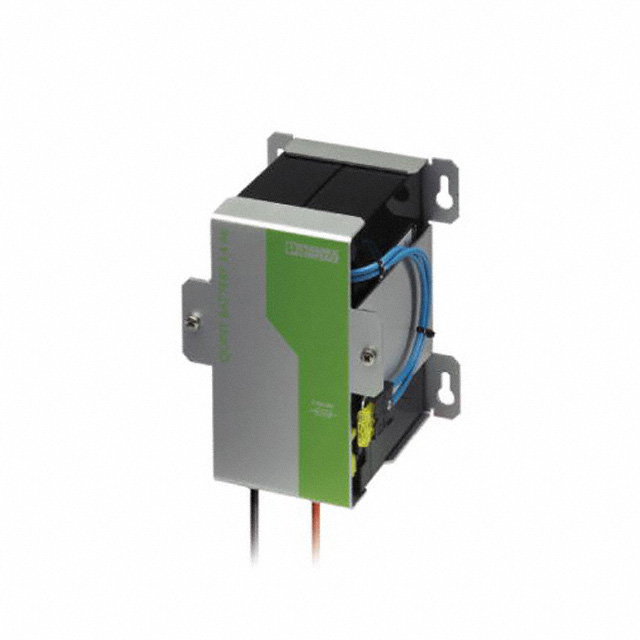

2866349
RECHARGEABLE BATT MODULE 24VDC
2866734
AC/DC DIN RAIL SUPPLY 24V 120W

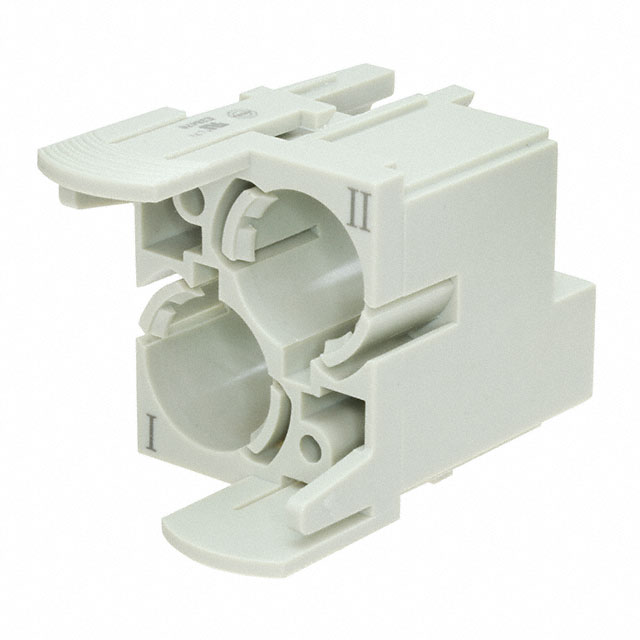

T2111027101-001
