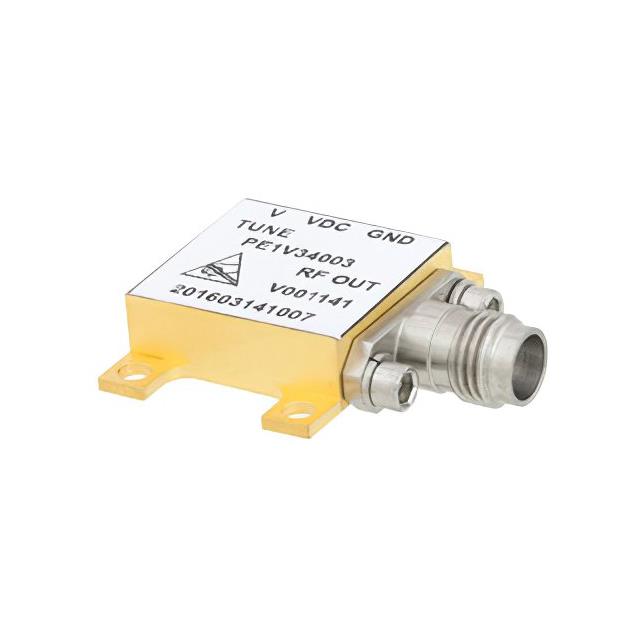

PE1V34003
Voltage Controlled Oscillator (VManufacturer: Pasternack
Categories: VCOs (Voltage Controlled Oscillators)
Quality Control: Learn More
40.8GHz Center Frequency 0 V ~ 13 V Voltage Controlled Oscillator 13 -3 dBm -30 2nd Harmonic Typ (dBc)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: Product Status: ActivePackaging: Retail PackageDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Retail Package |
| Package / Case | Module |
| Size / Dimension | 0.988"" L x 0.701"" W (25.10mm x 17.80mm) |
| Operating Temperature | -55°C ~ 85°C |
| Voltage - Supply | 5V |
| Height | 0.335"" (8.50mm) |
| Frequency Range | 38.4 ~ 43.2GHz |
| 2nd Harmonic, Typ (dBc) | -30 |
| Frequency - Center | 40.8GHz |
| Icc Max | 195mA (Typ) |
| Pushing (MHz/V) | 40 |
| Phase Noise Typ (dBc/Hz) | -74 |
| Power (dBm) | 13 -3 |
| Tuning Voltage (VDC) | 0 V ~ 13 V |
Request a Quote
