750-00030

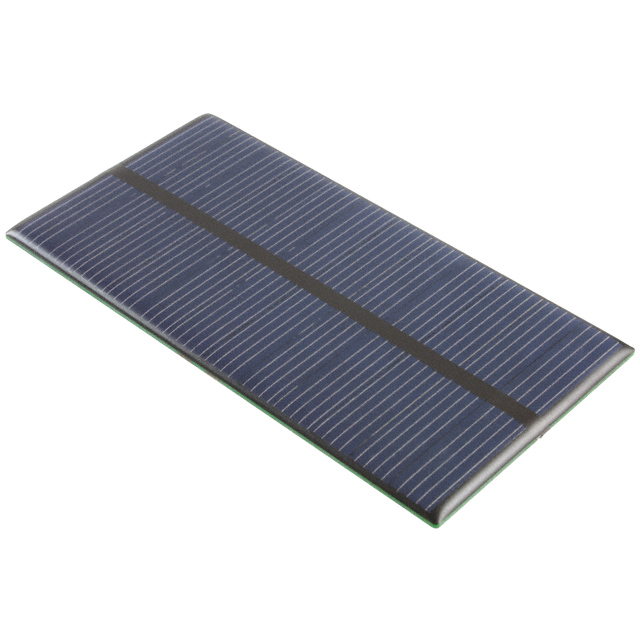

MONOCRYSTALIN SOLAR CELL 1W 6.9VManufacturer: Parallax Inc.
Categories: Solar Cells
Quality Control: Learn More
Parallax Inc. Monocrystalline Solar Cell, 1W, 6.9V Open Circuit Voltage. This component delivers 1 Watt of power with a maximum power point voltage (Vmpp) of 6V and a current at maximum power point (Impp) of 166 mA. The short-circuit current (Isc) is rated at 180 mA. The cell operates within a temperature range of 0°C to 70°C. Its dimensions are 125.00mm in length and 63.00mm in width. This monocrystalline solar cell is suitable for power generation applications in consumer electronics, educational kits, and remote sensing systems. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Size / Dimension | 4.920"" L x 2.480"" W (125.00mm x 63.00mm) |
| Type | Monocrystalline |
| Operating Temperature | 0°C ~ 70°C |
| Voltage @ Pmpp | 6 V |
| Current @ Pmpp | 166 mA |
| Voltage - Open Circuit | 6.9 V |
| Current - Short Circuit (Isc) | 180 mA |
| Power (Watts) - Max | 1 W |
Request a Quote
Clients Also Buy
750-00042
MONOCRYSTL SOLAR CELL 2.6W 600MV
750-00031

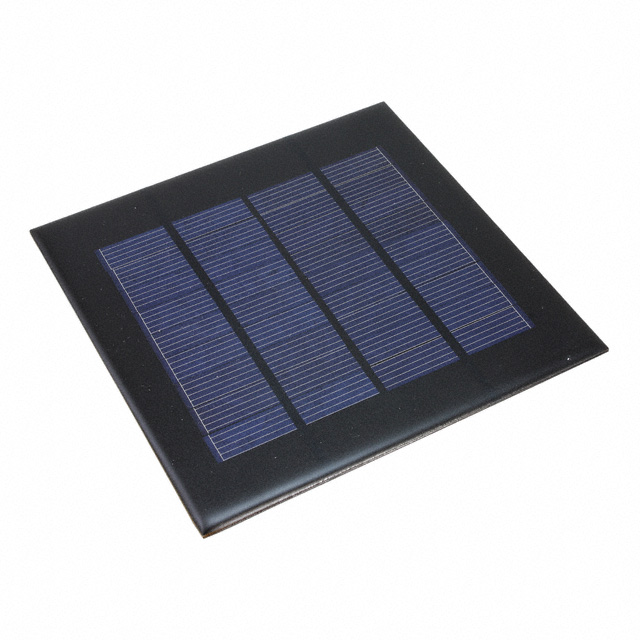

MONOCRYSTALN SOLAR CELL 1W 10.4V
750-00035

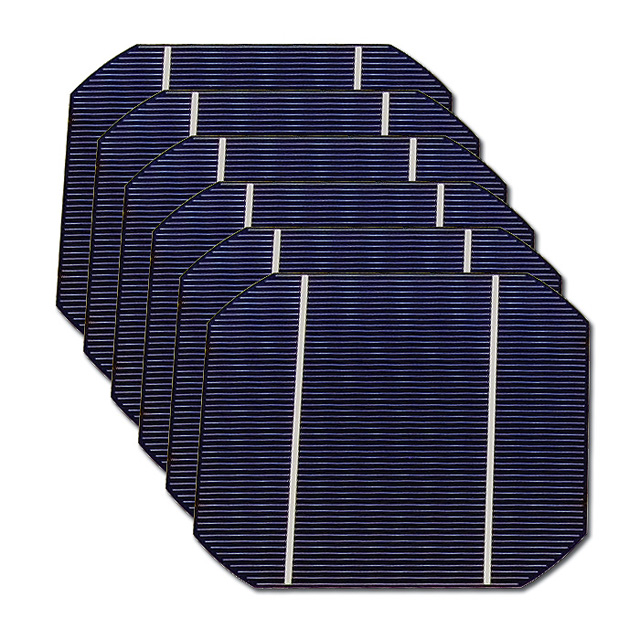

MONOCRY SOLR CELL 2.6W 600MV 6PK
