LCD MOD 80DIG 20X4 TRANSFLCT GRNManufacturer: Parallax Inc.
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Parallax Inc. 20x4 Alphanumeric LCD Module, part number 30058, features a transflective display with a green LED backlight. This character display module provides an 80-character capacity arranged in a 20 columns by 4 rows format, utilizing a 5 x 8 dot matrix for each character. The module supports both I2C and RS-232 interfaces for versatile communication. Its operational temperature range is -20°C to 70°C, and it requires a 5V supply voltage. The module's dimensions are 98.00mm x 60.00mm x 17.00mm, with a viewing area of 76.30mm x 25.00mm. This component is commonly found in industrial automation, embedded systems, and educational electronics projects.
Additional Information
Series: -RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Display Type | Alphanumeric |
| Display Mode | Transflective |
| Backlight | LED - Green |
| Interface | I2C, RS-232 |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 5V |
| Viewing Area | 76.30mm L x 25.00mm W |
| Character Size | 4.75mm H x 2.95mm W |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.55mm H |
| Outline L x W x H | 98.00mm x 60.00mm x 17.00mm |
| Text Color | Black |
| Background Color | Green |
| Number of Characters | 80.0 |
Request a Quote
Clients Also Buy

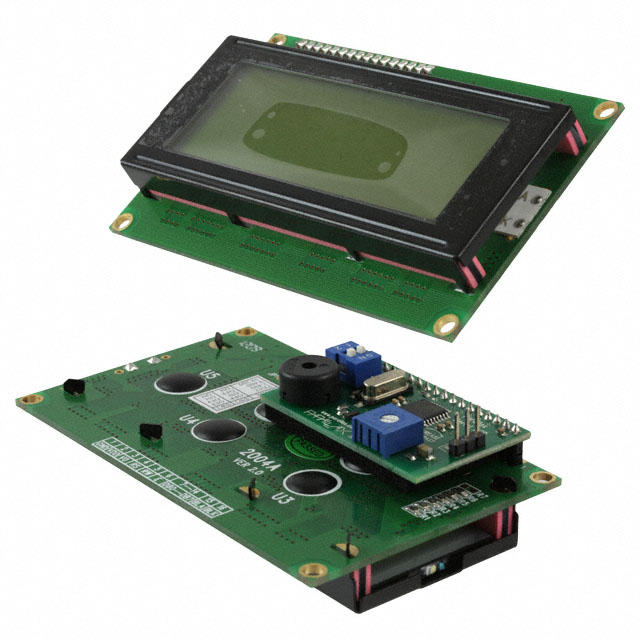

27979
LCD MOD 80DIG 20X4 TRANS YLW/GRN
29121
LCD MOD 16 DIG 8 X 2 REFLECTIVE

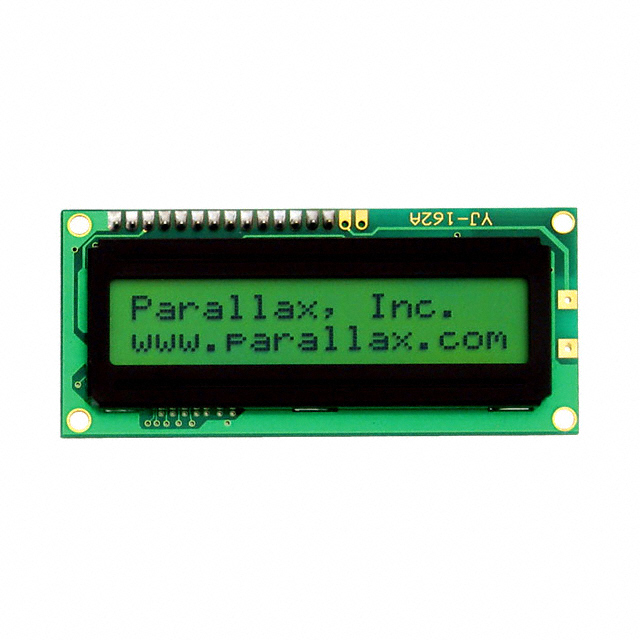

27976
