350-00009
PHOTORESISTOR FOR BASIC STAMPManufacturer: Parallax Inc.
Categories: CdS Cells
Quality Control: Learn More

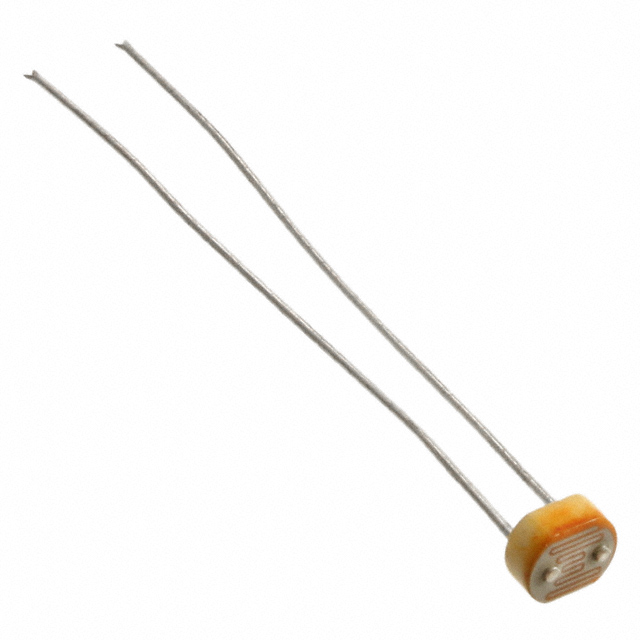

Parallax Inc. 350-00009 is a CdS photoresistor for light-sensing applications. This component exhibits a resistance range of 20 to 38 kOhms at 10 lux illuminance, with a minimum resistance of 1 MOhms in dark conditions after 5 seconds. It features a typical fall time of 5 ms and a rise time of 35 ms. The photoresistor is designed for through-hole mounting with a radial package. It can operate within a temperature range of -40°C to 75°C and supports a maximum peak voltage of 100V. This component is commonly utilized in educational electronics and hobbyist projects requiring ambient light measurement.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 75°C |
| Voltage - Max | 100Vpk |
| Cell Resistance @ Illuminance | 20 ~ 38kOhms @ 10 lux |
| Supplier Device Package | - |
| Fall Time (Typ) | 5 ms |
| Rise Time (Typ) | 35 ms |
| Cell Resistance (Min) @ Dark | 1 MOhms @ 5 s |
