PTGH7565S1_T0_00201

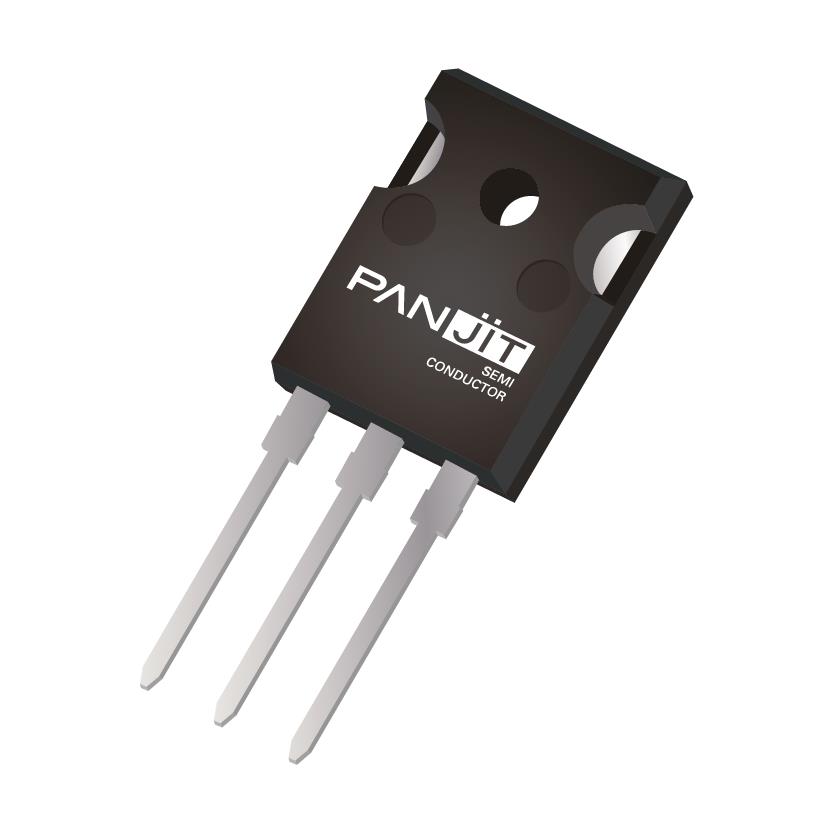

650V/75A IN TO-247-3L PACKAGE INManufacturer: Panjit International Inc.
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 650 V 133 A 366 W Through Hole TO247-3L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 57 ns |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 75A |
| Supplier Device Package | TO247-3L |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 30ns/137ns |
| Switching Energy | 2.47mJ (on), 1.27mJ (off) |
| Test Condition | 400V, 75A, 10Ohm, 15V |
| Gate Charge | 108 nC |
| Grade | - |
| Current - Collector (Ic) (Max) | 133 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 225 A |
| Power - Max | 366 W |
| Qualification | - |
