PSMP032N08NS1_T0_00601
80V/ 3.4MOHM / TJMAX 175C MV MOSManufacturer: Panjit International Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

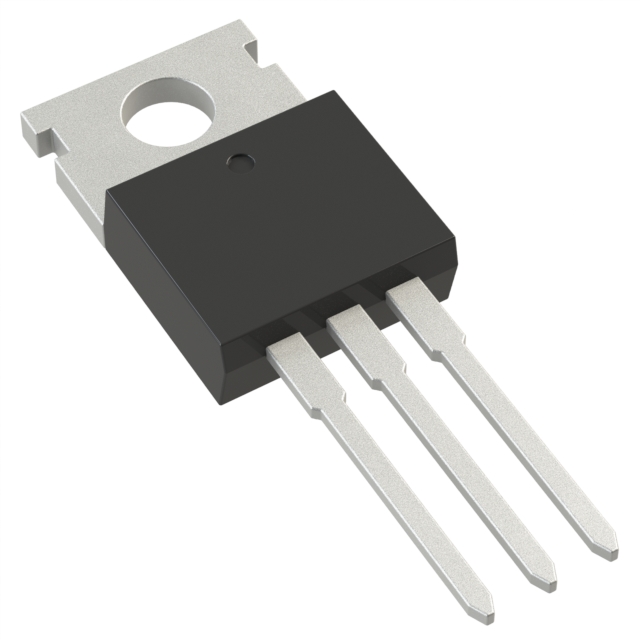

N-Channel 80 V 166A (Tc) 156W (Tc) Through Hole TO-220AB-L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 166A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.4mOhm @ 50A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 156W (Tc) |
| Vgs(th) (Max) @ Id | 3.75V @ 250µA |
| Supplier Device Package | TO-220AB-L |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 76 nC @ 7 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7430 pF @ 40 V |
