PJQ2461-AU_R1_000A1
60V P-CHANNEL ENHANCEMENT MODE MManufacturer: Panjit International Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

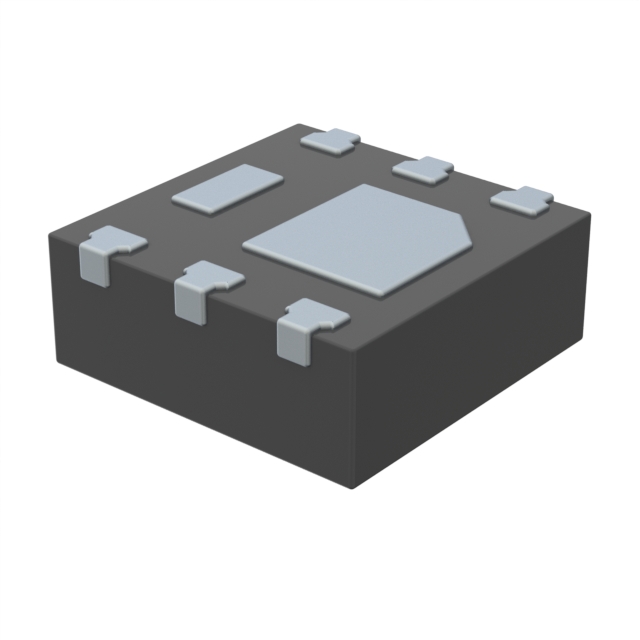

P-Channel 60 V 2.4A (Ta) 2W (Ta) Surface Mount DFN2020B-6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 2.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 170mOhm @ 2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | DFN2020B-6 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 8.3 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 430 pF @ 30 V |
| Qualification | AEC-Q101 |
Request a Quote
