PJQ1902_R1_00001
30V N-CHANNEL ENHANCEMENT MODE MManufacturer: Panjit International Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More

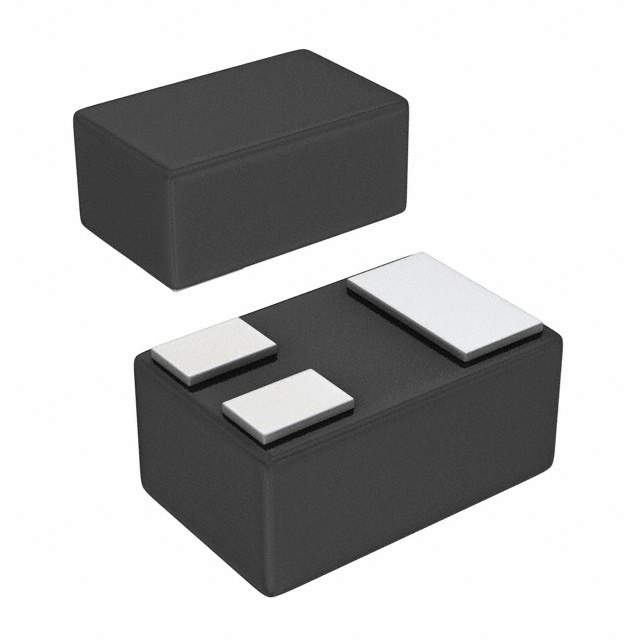

N-Channel 30 V 500mA (Ta) 700mW (Ta) Surface Mount 3-DFN (0.6x1)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-UFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 350mA, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 700mW (Ta) |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Supplier Device Package | 3-DFN (0.6x1) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 0.87 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 34 pF @ 15 V |
Request a Quote
