PJMF360N60E1_T0_00001
600V/ 360MOHM SUPER JUNCTION EASManufacturer: Panjit International Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 11A (Tc) 32W (Tc) Through Hole ITO-220AB-F
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

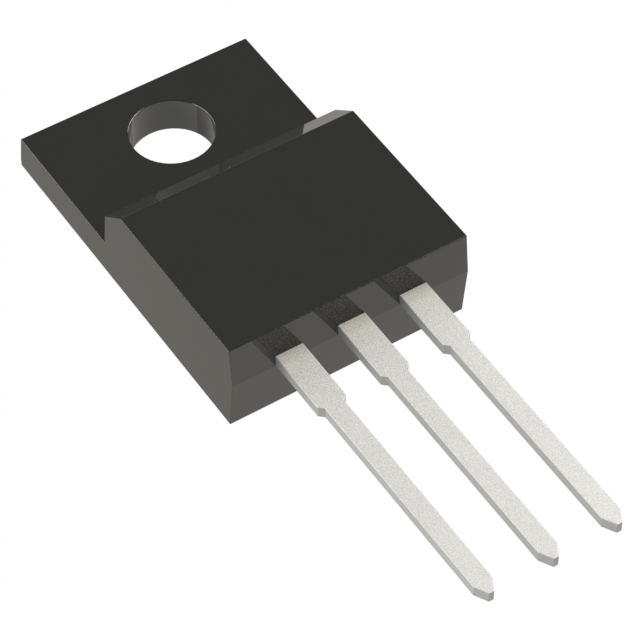

| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Rds On (Max) @ Id, Vgs | 360mOhm @ 3.8A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 32W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | ITO-220AB-F |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 717 pF @ 400 V |
